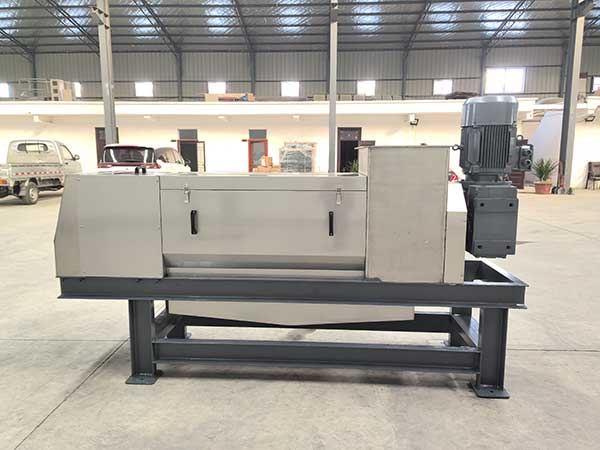

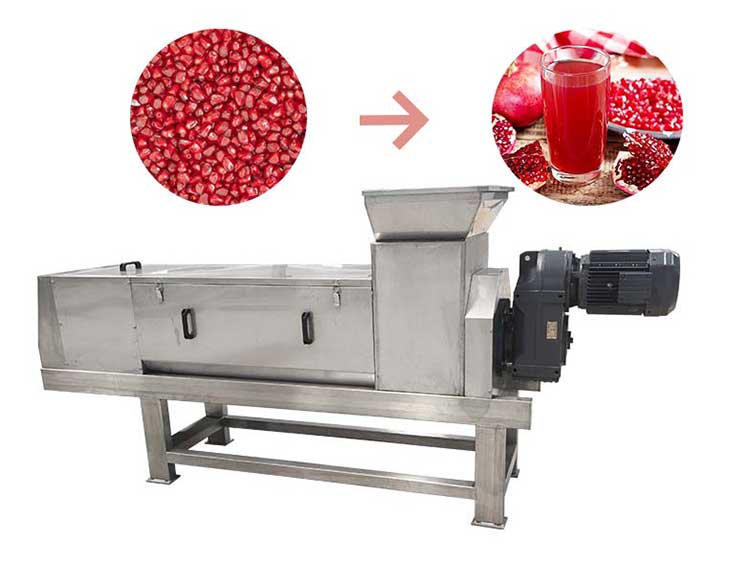

Pomegranate Juicer Machine
Furui Machinery provides industrial pomegranate juicer machine for large-scale juice factories and food processing plants. It uses cold screw press technology to deliver high juice yield while preserving the natural taste and nutrients of pomegranate juice.
- Cold Screw Press: Extracts pure juice with less heat buildup, preventing oxidation and bitter tannin contamination.
- High-Volume Yield: Available in processing capacities from 0.5 t to 20 t/h to fit heavy-duty industrial use.
- Stainless Steel Construction: Food-grade stainless steel ensuring hygiene, corrosion resistance, and long lifespan.
- We also offer complete pomegranate juice production line covering washing, peeling, deseeding, juicing, and sterilization.
Pomegranate Juicer Machine
Furui Machinery provides industrial pomegranate juicer machine designed for continuous, large-scale pomegranate processing. Featuring a low-speed, high-torque cold screw press technology, the machine delivers high juice yield while preserving the natural quality of pomegranate juice. With processing capacities ranging from 0.5 to 20 tons per hour, Furui provides complete, customizable processing solutions for commercial juice factories, pomegranate processing plants, and pomegranate seed oil producers.
| Model | FR-0.5-180 | FR-260 | FR-350 | FR-420 | FR-500 | FR-550 | FR-630 |
| Processing Capacity | 0.2-0.5 t/h | 1 t/h | 2 t/h | 3-4 t/h | 5-6 t/h | 8-10 t/h | 15-20 t/h |
| Screw Diameter | 180mm | 260mm | 350mm | 420mm | 500mm | 550mm | 630mm |
| Screw Speed (r/min) | 5-15 | 5-15 | 5-15 | 5-15 | 5-15 | 5-15 | 5-15 |
| Hydraulic Power | - | - | - | 1.1 kW | 1.1 kW | 1.1 kW | 2.2 kW |
| Motor Power | 3-4 kW | 5.5-7.5 kW | 7.5-11 kW | 11-15 kW | 15-18.5 kW | 22 kW | 30 kW |
| Dimensions (mm) | 1,800*550*920 | 2,200*700*1,200 | 3,380*900*1,450 | 4,280*1,000*1,750 | 5,105*1,200*2,050 | 5,220*1,220*2,150 | 5,800*1,300*2,250 |
| Weight | 450 kg | 900 kg | 1,300 kg | 2,600 kg | 3,050 kg | 3,550 kg | 4,300 kg |

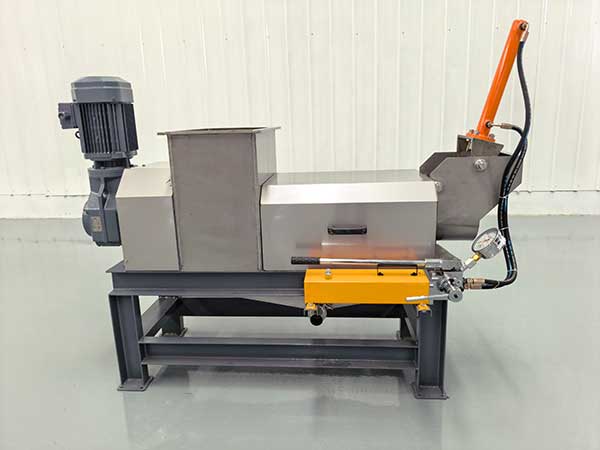

FR-180 Pomegranate Juicer

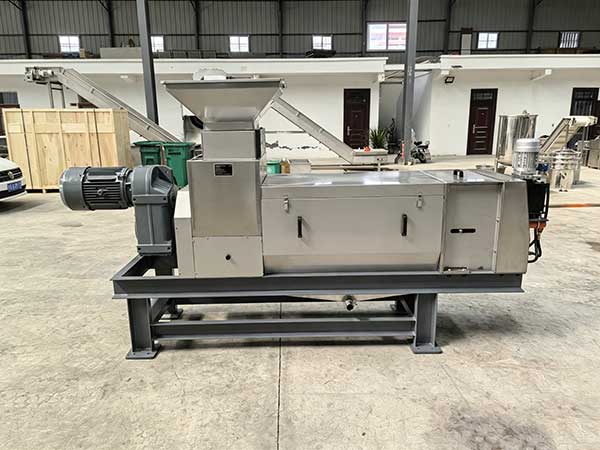

FR-350 Screw Press Juicer

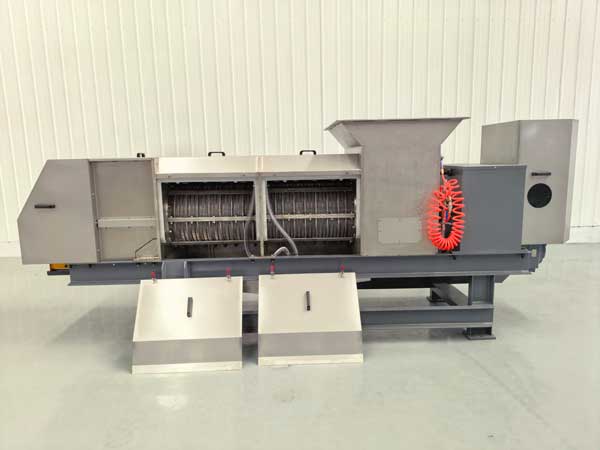

FR-500 Juicer Machine
Advantages of Pomegranate Juicer Machine
Pomegranate Juice Line to Greece

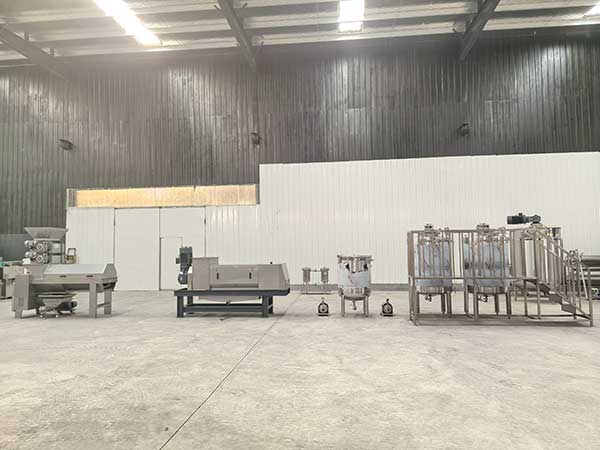

5 t/h Pomegranate Juice Line
Pomegranate Juice Production Line
From raw fruit washing to final pasteurization, Furui designs fully integrated lines tailored to your operational output:
Air Bubble Washing → Pomegranate Peeling and Deseeding → 3-Stage Purification → Dewatering → Manual Inspection → Screw Press Juice Extracting → Filtration → Pasteurization → Filling
The equipment can be supplied according to your real requirements.

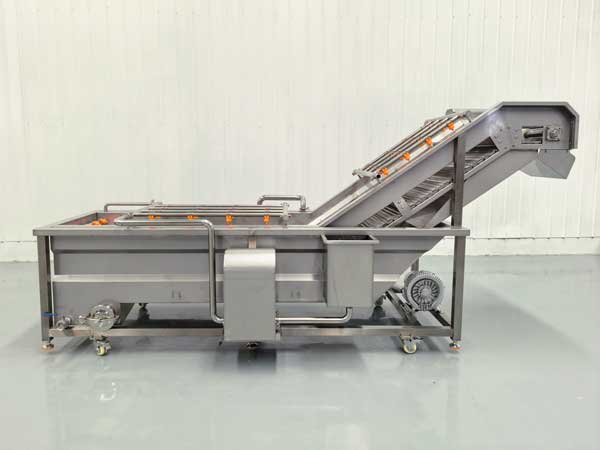

1. Washing --- Air Bubble Washing Machine
Function: Thoroughly washes fresh pomegranates, removing surface dirt, mud, leaves, and pesticide residues.
Features:
- Combines air bubble tumbling with high-pressure spray jets to achieve uniform cleaning without damaging the outer peel.
- Integrated water recirculating system reduces total water consumption and operational costs.
2. Pomegranate Peeling & Deseeding Machine
Function: Automatically cracks pomegranates and gently separates arils from the outer peel and internal membranes ~ over 90% aril integrity rate.
- Patent Separation Technology: to achieve a 90%-95% aril integrity rate. Keeps arils intact and avoids bitter membrane mixing into the juice.
- Automatically outputs arils from one discharge chute while expelling peel and membrane waste from the other.
- A single 1‑ton‑per‑hour deseeding machine replaces over 30 manual workers.
3. Three-Stage Aril Purification System
This system aims to eliminate membranes, pith, and broken debris.
- Primary Purifier (Vibration Separator): Screens out coarse peel fragments and heavy waste.
- Secondary Purifier (Floatation Machine): Uses gentle bubble agitation to float away light membranes, thin films, and micro-debris.
- Tertiary Purifier (Vibration Separator): Performs secondary fine screening to remove residual particles and drain surface water.
4. Vibration Dewatering Machine
-
Function: Rapidly removes free surface water from arils.
-
Drains excess rinse water to protect original juice density.
5. Manual Sorting Conveyor
-
Function: Allows visual inspection to pick out discolored arils, defective fruit, or rare trace debris before pressing.
-
Adjustable belt speed allows operators to maintain optimal quality control pacing.
6. Juicing --- Screw Press Machine
Function: Press clean pomegranate arils to yield high-quality raw juice while separating pomace and seeds.
High Juice Yield (75%-87%): Extracts up to 700-870 kg of juice per 1,000 kg of pomegranate arils, yielding over 20% more juice than centrifugal extractors (50%-60%) or manual methods (30%-51%).
Cold-Press Technology: Slow-speed screw pressing (5-15 rpm) eliminates heat caused by compression, retaining natural color and aroma for higher-quality pomegranate juice.
7. Juice Filtration
Filters out suspended pulp solids and fibers to achieve clear, stable juice.
8. Pasteurization System
The pasteurization system ensures product safety and extends shelf life.
Conclusion
Furui Machinery also offers other solutions for making pomegranate juice, such as a double-channel pulper machine. The pulper crushes the arils into a dense, pulpy juice, not clear juice, yielding about 55%-65% for jams, smoothies, nectar bases, or beverage uses. A popular option is double-stage pulper + screw press machine to maximize total raw material ROI. Contact our engineering team today to receive a tailored solution, video demo, and direct factory quote.
