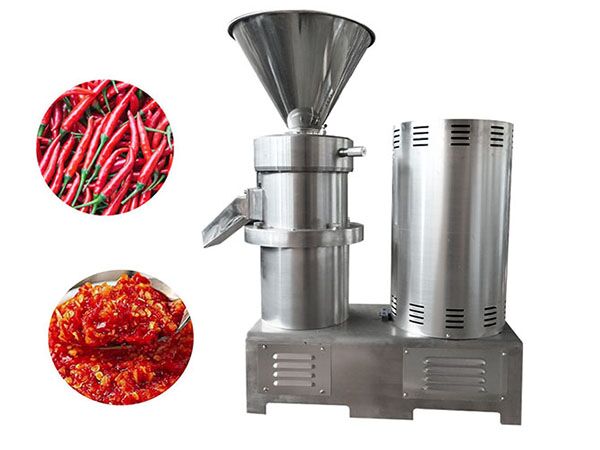

Chilli Sauce Making Machine

Furui Machinery offers a wide range of equipment for producing smooth and flavorful chilli paste from fresh peppers. The main equipment includes vegetable cleaning machine, vegetable crusher, colloid mill chilli sauce grinder, and more. This versatile production line is also suitable for making tomato sauce, fruit and vegetable purees, and more.

  • Constructed from stainless steel for great durability and food safety;
  • Capable of producing a variety of sauces and pastes, such as nut butter, tomato sauce, and other purees;
  • Can be used as a standalone machine or integrated with other equipment in a production line.
GET A FREE QUOTE
Chili Sauce Making Machine

Chili Sauce Machine for Sale

GET A FREE QUOTE

Chilli paste grinder is the essential equipment in the hot sauce production line, specifically designed to grind fresh peppers into a fine chili sauce. At Furui Machinery, our stainless steel sauce colloid mill can process between 10 kg to 3,000 kg of peppers per hour, making it suitable for both large-scale and small production lines. Additionally, our colloid mills are CE-certified, ensuring they meet international quality and safety standards. Please refer to the following parameters for more details.

Model Processing
Capacity (kg/h)		 Power (kW) Fineness (mesh) Weight (kg) Dimensions (mm) Hopper (L) Rotary Speed Inlet Diameter (mm)
JMS-50 10-20 1.5 (220V) 50-100 50 530×260×580 3 2,890 r/min 40
JMS-80 60-80 4 80-150 150 600×410×930 8 2,890 r/min 50
JMS-110 100-200 7.5 80-150 175 700×430×1000 8 2,900 r/min 50
JMS-130 300-500 11 80-200 285 990×440×1000 14 2,930 r/min 90
JMS-160 500-600 15 80-200 300 1000×460×1050 14 2,930 r/min 90
JMS-180 700-800 18.5 80-200 375 1000×490×1100 14 2,930 r/min 90
JMS-210 1000-1200 30 80-200 700 1260×600×1230 24 2,950 r/min 120
JMS-240 1200-1500 45 80-200 920 1330×630×1280 24 2,970 r/min 120
JMS-300 2000-3000 75 80-200 1300 1440×680×1420 32 2,970 r/min 270

Rotor and Stator Design

At Furui Machinery, we offer different tooth designs for rotors and stators. The shear-type design is specifically engineered for processing fibrous materials. It enables efficient crushing and separation of fibers, ensuring optimal performance and maximizing output. This design is suitable for materials like garlic, onions, tomatoes, ginger, peppers, fresh corn, and more. In addition, you can adjust the gap between the rotor and stator to control the fineness of the chili paste.

Rotor and Stator for Chili Sauce

Rotor and Stator for Chili Sauce

Chili Paste Machines

Chili Paste Machines

Features of Chili Paste Machine

Food-grade Stainless Steel Construction

  • 304 or 316 food-grade stainless steel is used for all parts in contact with the chili paste, ensuring hygiene and compliance with food safety standards.
  • The robust construction also offers excellent corrosion resistance, durability, and easy cleaning.

Wide Applications

  • Our chili sauce grinder is capable of processing not only chili paste but also other sauces and purees, such as tomato paste, strawberry puree.
  • More than that, the colloid mill is also widely used to make nut butter, for example, peanut butter, sesame paste, cocoa paste, etc.

Customization Options

  • Our chili sauce mill is available with various customizable features to suit specific processing needs, including design of feed hopper and outlet, adjustable fineness, etc.
  • In addition, spare parts, such as rotor and stator, are available.

How to Make
Chili Sauce?

Washing → Crushing → Grinding → Mixing and Homogenization (Optional) → Cooking and Pasteurization → Cooling → Filling and Packaging

Furui Machinery provides the equipment needed in this process, including colloid mills, washing machines, vegetable crushers, storage tanks, mixing tank, filling machines, and more.

1. Washing

Before processing, the chili peppers should be thoroughly cleaned to remove dirt and impurities.

Equipment: Fruit and vegetable bubble washing machine

2. Crushing

This process crushes the chili peppers into smaller pieces, preparing them for fine grinding.

Equipment: Fruit and vegetable crusher machine

3. Grinding

The crushed chili peppers are processed through the colloid mill to produce a smooth and homogenous chili paste.

Equipment: Colloid grinder(s)

4. Cooking

After grinding, the chili sauce is heated and cooked to achieve the desired flavor and for pasteurization.

Equipment: Steam Jacketed Kettle

5. Filling and Packaging

Once the sauce is ready, it can be bottled or packaged for storage or sale.

Equipment: Filling machine

Customer Service

Talk With Us Today for A Free Consultation!

Call us or contact us by WhataApp / Wechat

+86 193 3712 3736

Explore Our FAQs for Quick Solutions

1Are you a manurefacturer or a trader?
Furui Machinery is both a manufacturer and a trader. We have our own factory where we produce a range of equipment, and we also source and sell high-quality equipment from other trusted manufacturers. This allows us to offer a diverse selection of products to meet your specific needs.
2Do you offer after-sales service?
Of course. Our after-sales service includes but is not limited to installation guidance and commissioning, providing user manuals and videos, spare parts supply, warranties, maintenance, etc. If you have any problems, please feel free to contact us. We will get back to you in 24 hours.
3Does your equipment come with a warranty?
Of course, yes. Our equipment typically comes with a one-year warranty, depending on the specific product. You can contact our team for more details.
4Can you provide references from previous customers?
Yes, we can. You can also check our case studies from some of previous customers.
5How about the delivery time?
Typically, it takes 3 to 20 working days, which depends on the equipment and quantity you order. Some items can be shipped within 24 hours at the earliest! However, it will take longer for the customized products.
6Can I visit your factory before purchasing?
Of course. We warmly welcome customers to visit our factory for inspections. If an on-site visit is not convenient, we also offer the option of a virtual factory tour via video.
7Can you offer demo test?
Yes. We offer test run for some equipment. Moreover, we can provide test run videos or client videos for your reference.
