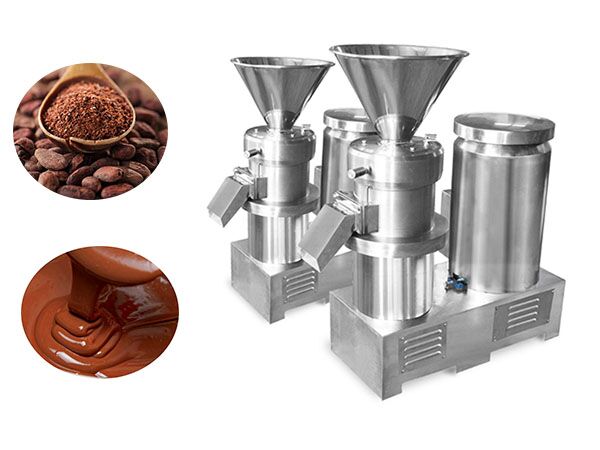

Cocoa Grinding Machine

At Furui Machinery, the cocoa grinding machine employs a colloid mill, which is designed for grinding cocoa nibs into chocolate liquor. Available in various capacities, our cacao bean grinders are ideal for both small-scale and industrial chocolate processing.

  • All food contact materials are made with 304 or 316 stainless steel;
  • Can grind 10 kg to 3,000 kg of cocoa nibs per hour;
  • Both standalone unit and complete production line are available;
  • Suitable for grinding cocoa nibs and a variety of nuts.
GET A FREE QUOTE
Cocoa Grinding Machine

Cocoa Grinding Machine

GET A FREE QUOTE

Cocoa nib grinder is essential equipment for chocolate manufacturing, designed to grind roasted cocoa nibs into smooth cocoa liquor (cocoa mass). During the grinding process, the natural cocoa butter in the nibs is released, forming a thick, flowing paste that serves as a key ingredient in chocolate production.

Furui Machinery offers a range of industrial colloid grinders for cocoa liquor and cocoa mass production. With multiple models available, our machines can meet different processing capacity requirements for commercial cocoa processing plants and chocolate factories. The grinding fineness can be adjusted to achieve the desired product texture, depending on the raw material and processing requirements. Below are models we offer.

Model Processing
Capacity (kg/h)		 Power (kW) Fineness (mesh) Weight (kg) Dimensions (mm) Hopper (L) Rotary Speed Inlet Diameter (mm)
JMS-50 10-20 1.5 (220V) 50-100 50 530×260×580 3 2,890 r/min 40
JMS-80 60-80 4 80-150 150 600×410×930 8 2,890 r/min 50
JMS-110 100-200 7.5 80-150 175 700×430×1000 8 2,900 r/min 50
JMS-130 300-500 11 80-200 285 990×440×1000 14 2,930 r/min 90
JMS-160 500-600 15 80-200 300 1000×460×1050 14 2,930 r/min 90
JMS-180 700-800 18.5 80-200 375 1000×490×1100 14 2,930 r/min 90
JMS-210 1000-1200 30 80-200 700 1260×600×1230 24 2,950 r/min 120
JMS-240 1200-1500 45 80-200 920 1330×630×1280 24 2,970 r/min 120
JMS-300 2000-3000 75 80-200 1300 1440×680×1420 32 2,970 r/min 270
Rotor and Stator for Cocoa Nibs

Rotor & Stator for Cocoa Nibs

Cacao Bean Grinder

Cacao Bean Grinder

Chocolate Grinders

Chocolate Grinders

Advantages

  • Wet Grinding: Processes roasted cocoa nibs into cocoa mass through mechanical shearing and compression.

  • Adjustable Fineness: The grinding gap between rotor and stator can be selected to control the fineness of cocoa liquor.

  • Food-grade Stainless Steel: Product-contact parts are available in SS304 or customized SS316 stainless steel.

  • Custom Solution: Available as a standalone grinder or as part of a complete cocoa processing line.

Components

  • Hopper: Feed cocoa nibs into the machine.
  • Rotor and Stator: Core part of the colloid mill. The rotor rotates at high speed, creating a powerful shearing force against the stationary stator. Through continuous grinding, the cocoa nibs are ground into smooth and uniform paste.
  • Discharge Outlet: The cocoa liquor is discharged through this outlet.
  • Motor: It drives the rotor through a belt to rotate at high speeds.

Video of Grinding Cocoa Nibs

How to Make Cocoa Paste from Cocoa Beans？

Removing impurities -- Roasting -- Cooling -- Grinding -- Refining -- Storage -- Flavoring and Mixing

1. Select and clean the cocoa beans to remove any debris or impurities.

Equipment: Stone and impurity removal machine

2. Roast the cocoa beans to enhance flavor and reduce moisture. Then cool down the roasted beans.

Equipment used: Nut roaster and cooling machine

3. Peel the cocoa beans (separate shells and crush into cocoa nibs). The removed shells are collected in a cyclone separator, while the clean cocoa nibs will be further processed.

Equipment used: Cocoa bean peeling machine

4. Grind cocoa nibs into cocoa liquor (including coarse grinding and fine grinding to achieve the desired fineness).

Equipment used: Colloid mill machines

5.  Store the cocoa paste properly by using a storage tank with an agitator to keep the paste homogeneous.

FAQs

1What is a cocoa nib grinder used for?
A cocoa nib grinder is used to grind roasted cocoa nibs into cocoa liquor, also known as cocoa mass.
2What is the difference between a cocoa nib grinder and a cocoa powder grinder?
A cocoa nib grinder (colloid grinder) processes roasted cocoa nibs into liquid cocoa mass (cocoa liquor), while a cocoa powder grinder processes cocoa cake into fine cocoa powder. Cocoa liquor is a kind of wet grinder, which the powder grinder is a kind of dry grinder.
3Can the grinding fineness of cocoa liquor be adjusted?
Yes. The grinding gap between the rotor and stator can be adjusted to control the grinding fineness.
4Can a colloid grinder process whole cocoa beans?
Yes, a colloid grinder can process whole cocoa beans, but it is not recommended. The hard cocoa shells can cause excessive wear on the grinding components, shortening their service life. Additionally, grinding whole cocoa beans may result in uneven particle sizes and make it difficult to achieve the desired fineness of cocoa liquor. For better grinding performance and product quality, we recommend feeding cocoa nibs into the colloid grinder.

Conclusion

If you're aiming to produce high-quality cocoa butter on a commercial scale, investing in a reliable cocoa grinder machine is crucial. Furui Machinery offers a range of colloid mill machines specifically designed for efficient cocoa paste production, with processing capacities ranging from 50 to 3,000 kg/h. Whether you're operating a small-scale or a large commercial production line, our machines are built to meet your needs. Constructed from durable stainless steel and compliant with food safety certifications, our machines ensure both safety and longevity. In addition, we provide related equipment for cocoa paste and powder production. Contact us today for more details!
