Vegetable Crusher Machine
Furui Machinery offers a wide range of industrial fruit and vegetable crusher machines for sale, which are designed to handle large quantities of produce. These machines are widely used to crush fruits and vegetables into smaller pieces for further processing, for example, juice production. Our fruit and vegetable crusher comes in different designs and models, including:
- PS Crusher Machine
- CPS Series Cage Crusher Machine
- CPJ Series Hammer Crusher Machine
Industrial Fruit and Vegetable Crusher
Industrial fruit and vegetable crusher can efficiently crush fruits and vegetables into small pieces to prepare them for subsequent production processes. This crushing machine is widely used in juice production and food waste treatment. In addition, it can be used both as a standalone unit and integrated with other equipment in a production line.
At Furui Machinery, we offer a wide range of fruit and vegetable crushers to meet your various needs. All our crushing machines are constructed from stainless steel, in compliance with hygiene standards. Welcome to contact us for more details!
1. PS-5 Crusher Machine
- Capacity: 0.5-5 t/h
- Power: 1.5 kW
- Blade Speed: 310 rpm
- Dimensions: 650*500*1,160mm
- Crushed particle size: 5-8 mm
- Applications: Ideal for processing soft fruits and vegetables, and pitted fruits that have been pre-cooked or softened, for example, tomatoes, kiwis, mulberries, strawberries, apples, pears, etc.
PS Crusher Machine
2. LPS-5 Crusher Machine
- Capacity: 0.5-5 t/h
- Power: 3 kW
- Blade Speed: 1,450 rpm
- Dimensions: 650*500*1,160mm
- Crushed particle size: 2-5 mm
- Applications: Suitable for berry fruits and vegetables, pre-cooked and softened pome fruits, and leafy vegetables, such as tomatoes, kiwis, mulberries, apples, pears, cabbage, and green vegetables.
LPS Crusher Machine
The PS-5 and LPS-5 shredder machines are very similar. Both of them are composed of a feeding hopper, crushing unit, support frame, discharge outlet, and transmission system. During operation, the rotating blades rotate at high speeds around the axis, while the material is sheared and crushed in the gap between the rotating blades and fixed blades. Due to the different rotating speeds, the LPS-5 results in a more refined crushing process. Typically, the crushed material size ranges from 2-5mm. These crushers are primarily utilized as pre-treatment equipment for industrial juicer machines.
3. CPS Crushing Machine
We have four models for CPS series crushers. This series is ideal for crushing various fruits and vegetables (except fruits with pits), for example, apples, pears, tomatoes, wheatgrass, and leafy vegetables.
| Model | Capacity | Power | Dimensions (mm) |
| CPS-2 | 2t/h | 3.0kW | 950*400*1,650 |
| CPS-5 | 5t/h | 5.5kW | 1,150*450*1,850 |
| CPS-10 | 10t/h | 11kW | 3,140*500*2,000 |
| CPS-20 | 20t/h | 22kW | 1,800*700*2,500 |
CPS Crusher Machine

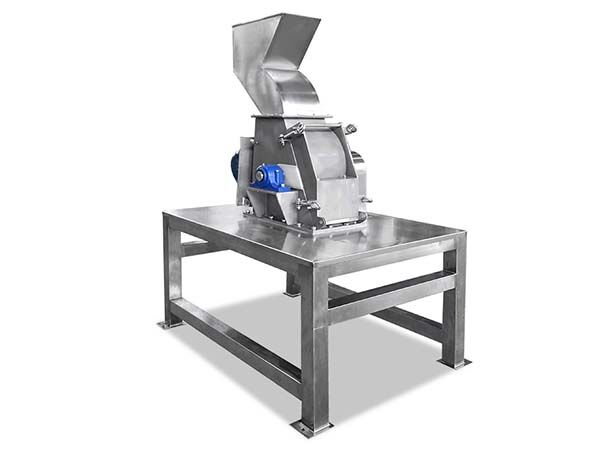

4. CPJ Hammer Crusher
This hammer crusher is designed for breaking down fruits such as apples, pears, ginger roots, carrots, potatoes, and pitted fruits like dates. The crushed particle size can be customized according to user requirements.
| Model | Capacity | Power | Dimensions (mm) |
| CPJ-2 | 2t/h | 3.0kW | 1,000*600*1,500 |
| CPJ-5 | 5t/h | 5.5kW | 1,130*850*1,850 |
| CPJ-10 | 10t/h | 11kW | 1,280*1,100*2,035 |
| CPJ-20 | 20t/h | 22kW | 1,830*1,100*2,500 |
CPJ Hammer Crusher
Working Principle
The CPS and CPJ series are suitable for large-scale processing of fruits and vegetables. The CPS cage crusher operates by rotating fly blades, which push the material forward while the fixed blades crush the material roughly. Then the crushed materials are driven by the ribs on the rotor to rotate at high speed. Meanwhile, the knife row on the stator further crushes the materials. The particle size is determined by the rotor’s speed, the distance between the flying and fixed blades, and the blade spacing.
The CPJ hammer crusher uses a series of hammers attached to a high-speed rotating shaft. As the material enters the machine, the rotating hammers strike and break it down. Crushed material falls through a screen, with smaller particles passing through and larger pieces remaining for further crushing. The particle size can be adjusted by the opening size of the screen and the gap between the hammer and the screen.
Conclusion
Selecting the right fruit and vegetable shredder depends on your specific production needs, including the type of produce being processed, desired output capacity, and final particle size. Furui Machinery offers a range of industrial vegetable crushers, which are widely used in juice production and fruit/vegetable waste management. For more information or to request a quote, please feel free to contact us!
