Spiral Juice Extractor
Spiral juice extractor is an industrial juicer machine from Furui Machinery. This juicer is suitable for extracting juice from fruits and vegetables like tomatoes, pineapples, apples, coconut meat, ginger, and more.
- Automatic separation of pulp and juice;
- Processing capacity of 0.5 to 2.5 t/h;
- Constructed from food-grade stainless steel;
- Customizable screen opening size from 0.3-2mm;
- Can be used as a standalone machine or integrated into a juice production line.
Specifications of Spiral Juice Extractor
Spiral juice extractor is a versatile tool for industrial juice production. This juicer adopts a screw press mechanism for efficient pulp and juice separation from various fruits and vegetables. Furui Machinery offers two series of screw press juicers: the LZ and PZJ series.
Both the LZ and PZJ series are ideal for processing materials like tomatoes, pineapples, apples, peppers, spinach, coconut meat, ginger, and more. The LZ series is suited for already crushed or chopped fruits and vegetables, while the PZJ series is integrated with a crusher, allowing the material to be crushed before it enters the spiral juicer. Below are more parameters for your reference.
LZ Series
| Model | Capacity | Power | Dimensions |
| LZ-0.5 | 0.5 t/h | 1.5 kW | 910*385*810mm |
| LZ-1.5 | 1.5 t/h | 4.0 kW | 1,300*500*1,330mm |
| LZ-2.5 | 2.5 t/h | 11 kW | 1,480*740*1,780mm |

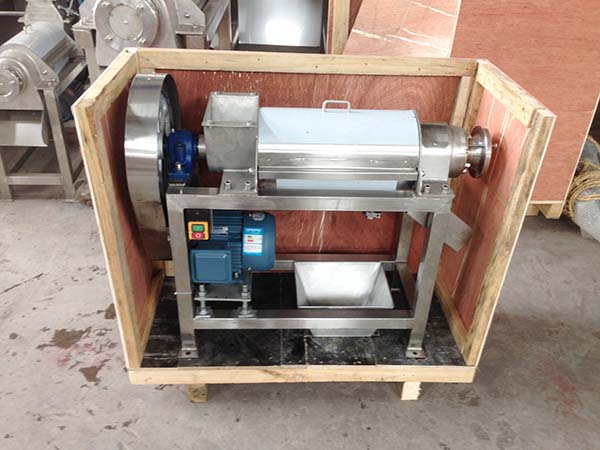

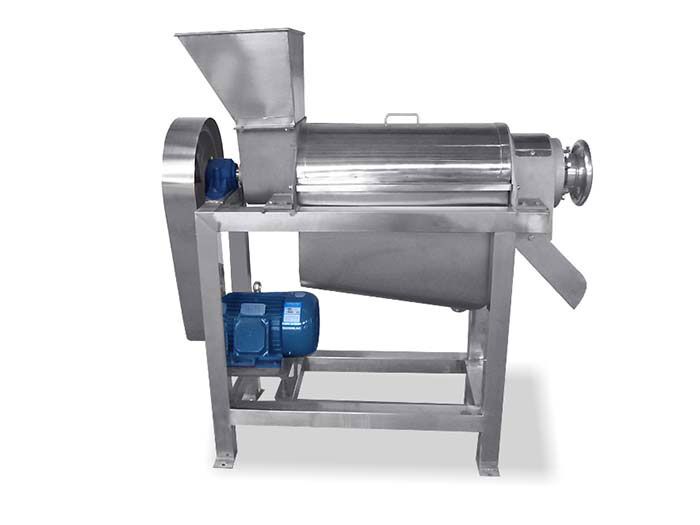

LZ Spiral Juicer
PZJ Series (With Crusher)
| Model | Capacity | Power | Dimensions |
| PZJ-0.5 | 0.5 t/h | 2.05 kW | 910*500*1,250mm |
| PZJ-1.5 | 1.5 t/h | 6.5 kW | 1,300*650*1,380mm |
| PZJ-2.5 | 2.5 t/h | 12.5 kW | 1,500*700*2,000mm |

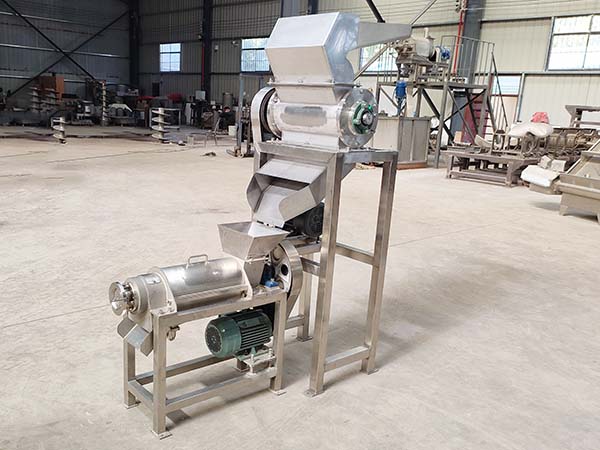

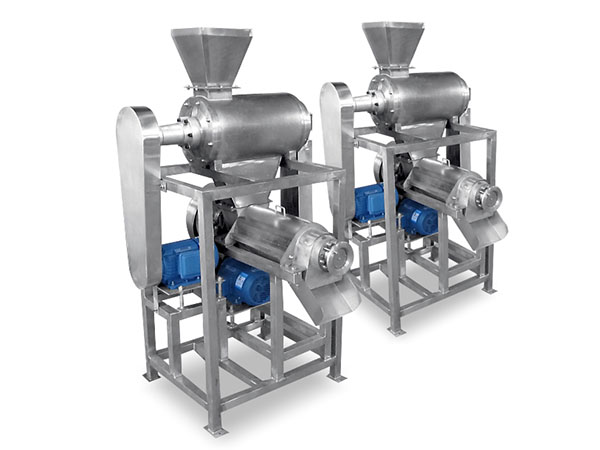

PZJ Spiral Juice Extractor
Applications of Screw Juicer
- Fruit Juices: Perfect for extracting juices from apples, pears, pineapples, grapes, berries, and more.
- Vegetable Juices: Ideal for juicing tomatoes, carrots, cucumbers, celery, beetroot, ginger roots, etc.
- Other Juices: Efficient for juicing leafy greens like kale, spinach, wheatgrass, and more.
Features of Screw Type Juice Extractor
1. Automatic Separation of Pulp and Juice
This juicer machine is easy to operate. Especially, the PZJ series can automatically complete the crushing, juicing, and slag removal processes.
2. Screw Press Mechanism
It adopts screw press mechanism, offering efficient extraction from various fruits and vegetables. The juice yield is up to 70%.3. Safe Materials
All food contact parts and the frame are made of SUS304 stainless steel, ensuring durability and hygiene.4. Versatility
Our screw juicer is widely used in extracting juice from various fruits and vegetables, such as apples, pineapples, tomatoes, grapes, ginger roots, and more.
5. Custom Design

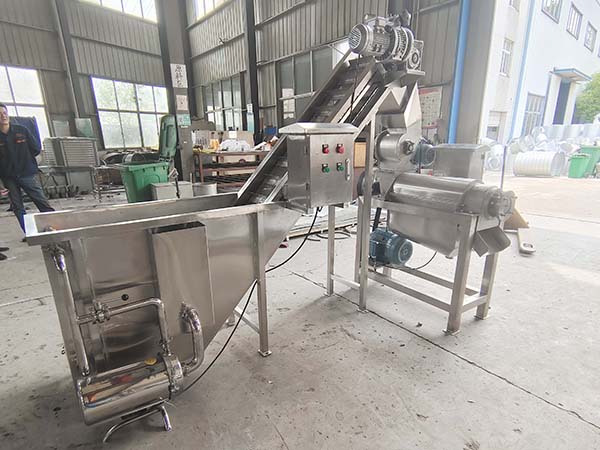

The juicer machine can be used separately or as a part of a juice production line. Moreover, we offer different screen opening sizes to choose from according to your needs.
6. Low Operating Cost
With a straightforward design and SS material, our screw juicer is easy to clean and maintain. Besides, it requires low power consumption to reduce operating costs.
How Does A Spiral Juicer Work?

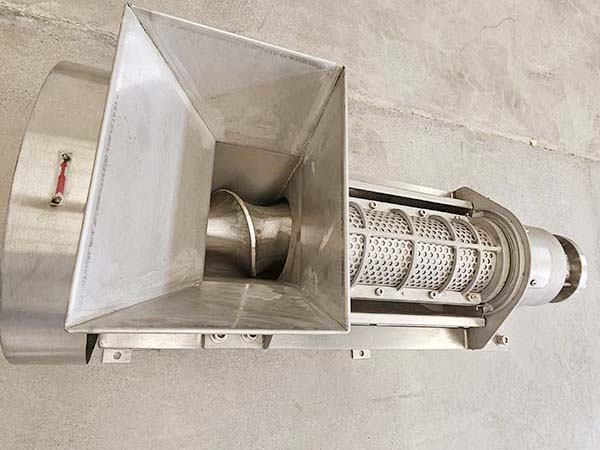

The screw press juicer consists of a feed hopper, front support, screw, screen, juice collector, slag outlet, and transmission components.
For the LZ series juicer, it's necessary to crush the material into small pieces before feeding. However, the PZJ series juicer is equipped with an integrated crusher, allowing you to feed the materials directly.
Then the crushed material is pushed by the screw toward the slag outlet. As the screw rotates, the diameter of the screw gradually increases while the pitch decreases, causing the material to be compressed as it moves forward. As the volume of the spiral cavity decreases, the juice is squeezed out and flows into the juice container through the screen.
The solid material is then conveyed to the discharge outlet. As more material is continuously pushed forward, the pressure increases, finally forcing the slag out through the discharge outlet.
Contact Us for Screw Juice Extractors

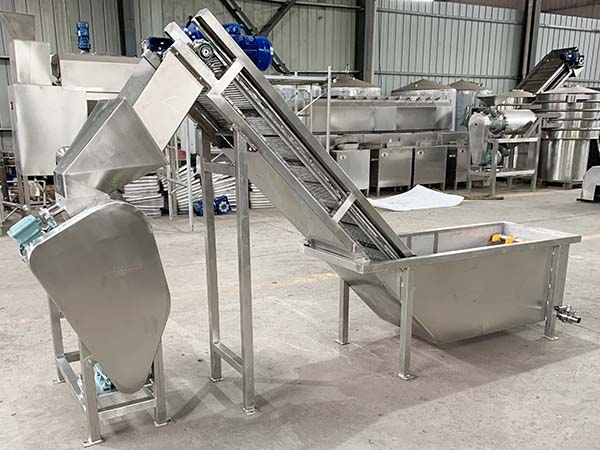

Furui Machinery offers a range of screw type juice extractors designed to meet the demands of industrial-scale juice production. Our machines are CE-certified, ensuring compliance with international safety and quality standards. We also provide a variety of additional equipment to streamline your juice production line, including fruit washing machines, crushers, and filling machines. For more information on our juicers and other equipment, please contact us today!
