Sludge Dewatering Machine
At Furui Machinery, we offer a high-performance multi disc screw press designed for efficient sludge thickening and dewatering. With compact, energy-saving, and clog-free design, our sludge dewatering machine is ideal for both municipal and industrial wastewater treatment.
- Non-Clogging Design: Unique moving and fixed ring filter design ensures self-cleaning and prevents clogging.
- Versatile Applications: Perfect for municipal, chemical, food processing, paper, and other industrial sludge treatment.
Multi-Disc Screw Press
Furui Machinery provides efficient dewatering solutions for a wide range of industries, including manure slurry, paper mills, food and beverage processing, municipal and industrial wastewater treatment, etc. Our multi-disc screw press is specially designed to handle diverse sludges even the most challenging sludge types - from low-concentration sludge with solid content as low as 2,000 mg/L to thick, oily, and highly viscous sludge.
Our sludge dewatering machine features a modular design with multiple moving and fixed discs. The self-cleaning ring system ensures continuous, clog-free operation with low energy consumption. If you're looking for a reliable and energy-saving solution for sludge treatment, Furui Machinery’s multi-disc screw press is your ideal choice.
Please check the specifications on the right side or contact us for more details!
| Model | Shaft Diameter | Power (kW) | Capacity | Dimensions (L*W*H) | Weight |
| DL131 | Ø130*1 | 0.55 | 0.3-3 m3/h | 1,969*756*1,040 mm | 205 kg |
| DL132 | Ø130*2 | 1.11 | 0.5-6 m3/h | 2,069*910*1,040 mm | 275 kg |
| DL201 | Ø200*1 | 0.80 | 0.45-4.5 m3/h | 3,000*800*1,270 mm | 250 kg |
| DL202 | Ø200*2 | 1.20 | 0.6-9 m3/h | 3,000*935*1,270 mm | 470 kg |
| DL301 | Ø300*1 | 1.65 | 1-15 m3/h | 3,255*985*1,600 mm | 820 kg |
| DL302 | Ø300*2 | 2.95 | 2-12 m3/h | 3,455*1,295*1,600 mm | 1,350 kg |
| DL303 | Ø300*3 | 4.40 | 3-18 m3/h | 3,605*1,690*1,600 mm | 1,820 kg |
| DL304 | Ø300*4 | 5.50 | 4-24 m3/h | 3,900*2,110*1,750 mm | 1,900 kg |
| DL402 | Ø400*2 | 2.95 | 8-40 m3/h | 5,200*2,800*2,300 mm | 3,350 kg |
| DL403 | Ø400*3 | 4.40 | 12-60 m3/h | 5,400*2,500*2,300 mm | 4,350 kg |
-

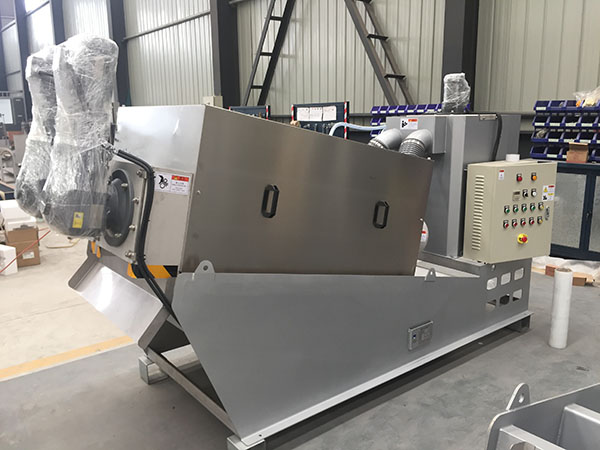

- Multi Disc Screw Press
-

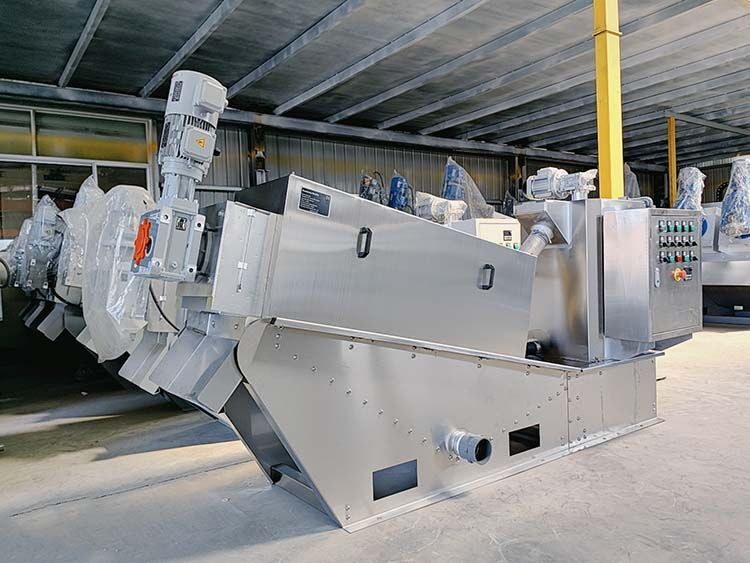

- Sludge Dewatering Press
-

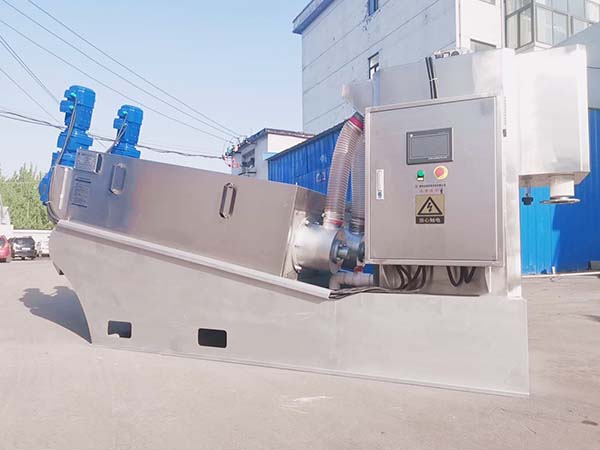

- DL-402
Applications
- Dewater animal manure (cow dung, pig, chicken) or biogas plants;
- Dewatering municipal and industrial sludge or wastewater;
- Treatment of sludge from meat processing and beverage production;
- Dewatering of fiber-rich wastewater sludge, such as paper pulp;
- Can be used to dewater oily sludge or sludge with high-viscosity content.
Who Uses Multi Disc Screw Press?
- Municipal governments
- Environmental engineering companies
- Food factories, such as slaughterhouses or beverage producers
- Animal farms and biogas plants
- Industrial manufacturers
- Waste management companies
- Paper mills and chemical factories
Features of Sludge Dewatering Machine
Wide Applications
Our sludge dewatering machine is suitable for various industries and various types of sludge, including those with high viscosity and oil content.
Non-Clogging Design
Unique moving and fixed ring filter design prevents clogging, which reduces the need for frequent flushing, thereby minimizing water consumption.
Continuous Operation
The dewatering process is fully automated - from sludge extraction and polymer dosing to discharge of the dewatered sludge cake.
No Secondary Pollution
- Only minimal cleaning water is needed
- No contaminated water is produced during operation
Low Operating Costs
-
Compact, integrated design saves space
-
Low-speed screw reduces power consumption
Durable
- Made almost entirely of stainless steel
- Mechanical extrusion as the core dewatering method

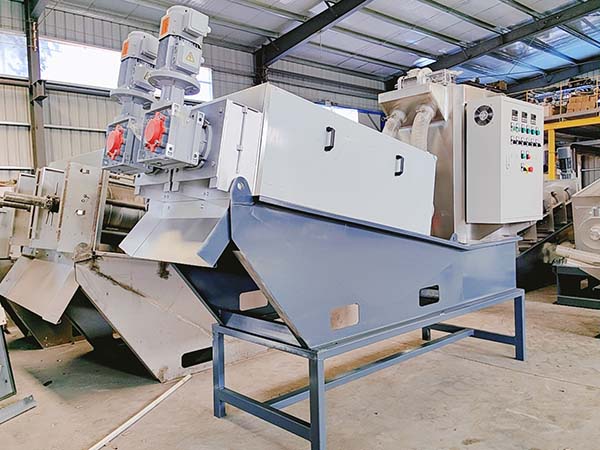

Sludge Dewatering Machine

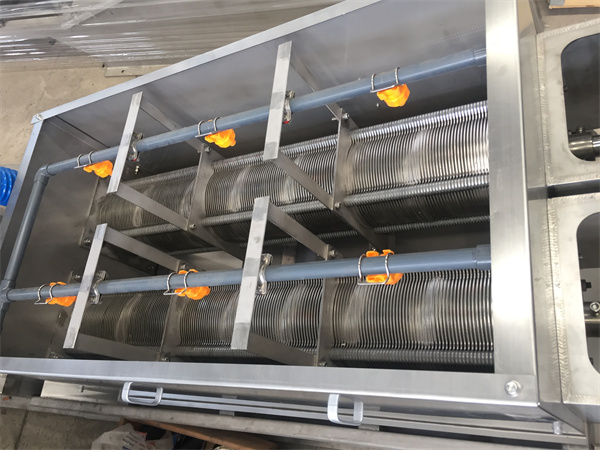

Fixed and Moving Plates

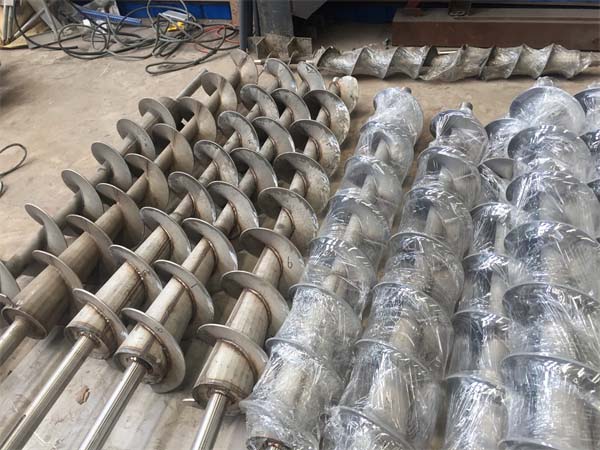

Screws
How Does Multi-Disc Screw Press Work?
The multi-disc screw press operates based on the principle of screw extrusion. It dewaters sludge by applying strong internal pressure generated from changes in the screw shaft’s diameter and pitch, along with the narrow gaps between moving and fixed rings.
The main structure consists of a filter unit formed by alternating fixed and moving rings, through which a screw shaft runs. The machine is divided into two main zones: the concentration section and the dewatering section. In the concentration section, sludge is pre-thickened by gravity, allowing excess water to drain naturally. Then, the sludge is conveyed into the dewatering section. As it moves forward:
- The filter gaps gradually narrow
- The screw pitch becomes smaller
- The back pressure plate creates resistance
These combined factors result in increasing internal pressure that compresses the sludge and reduces its volume. Water is squeezed out through the gaps between the rings, resulting in a dewatered sludge cake with a significantly reduced moisture content.
Sludge Dewatering Machine Videos
Conclusion
At Furui Machinery, we provide customized dewatering solutions for a wide range of industries, including manure treatment, paper pulp processing, dewatering spent grains, food waste, and more. Our multi-disc screw press is designed to separate water from sludge in industrial and municipal wastewater treatment systems. This machine can also be used to process the filtrate generated during manure dewatering. If you're looking for a sludge dewatering system, Furui Machinery is your ideal partner. Contact us today to receive a free quote.
