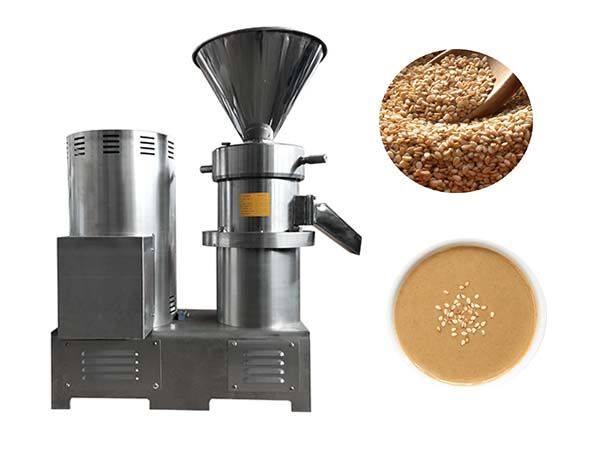

Sesame Paste Machine

Sesame paste machine from Furui Machinery employs an advanced colloid mechanism to grind sesame seeds into a smooth butter, known as tahini. This versatile machine is not only perfect for sesame seeds but also effectively processes other nuts into paste or butter, including peanuts, cocoa nibs, cashews, pistachios, and almonds.

  • Processing capacity ranges from 10 to 3,000 kg/h.
  • Can function as a standalone unit or be integrated into a production line.
  • Made with stainless steel, ensuring longevity and resistance to wear and tear.
GET A FREE QUOTE
Sesame Paste Machine

Sesame Paste Machine

GET A FREE QUOTE

Sesame paste machine, also known as tahini grinder, is designed to grind sesame seeds into a smooth and creamy paste. Furui Machinery offers a wide range of sesame grinding machines to cater to various production needs. Our machines are capable of processing from 10 to 3,000 kg of sesame seeds per hour. Below are more parameters for your reference.

Model JMS-80 JMS-110 JMS-130 JMS-160 JMS-180 JMS-210 JMS-240 JMS-300
Capacity (kg/h) 60-80 100-200 300-500 500-600 700-800 1,000-1,200 1,200-1,500 3,000-4,000
Power (kW) 4 7.5 11 15 18.5 30 45 75
Voltage (V) 380 380 380 380 380 380 380 380
Weight (kg) 150 175 285 300 375 700 920 1,300
Dimension (mm) 600*410*930 700*430*1,000 990*440*1,000 1,000*460*1,050 1,000*490*1,100 1,260*600*1,230 1,330*630*1,280 1,440*680*1,420
Hopper Capacity 8L 8L 14L 14L 14L 24L 24L 32L
Rotor Diameter 80mm 110mm 130mm 160mm 180mm 210mm 240mm 300mm
Rotary Speed 2,890 r/min 2,900 r/min 2,930 r/min 2,930 r/min 2,930 r/min 2,950 r/min 2,970 r/min 2,970 r/min

The sesame paste machine features a unique stator and rotor design that incorporates share-type and diamond-shaped teeth. This innovative design optimizes both fineness and output, making it ideal for processing a wide range of nuts, including peanuts, cashews, sesame seeds, almonds, hazelnuts, and more.

Additionally, the gap between the rotor and stator can be adjusted to control the fineness of the paste.

Moreover, the tahini grinder can be fixed or mobile to suit your needs. If you have any questions, please contact us!

Nut Rotor
JMS-240 Colloid Grinders to Canada

Advantages of Sesame Seed Grinder Mill

Fine Grinding Precision

The sesame seed grinder uses a high-speed rotor and finely-toothed stator to apply intense shear, friction, and impact forces. This results in:

  • Particle sizes under 50 microns
  • Smooth, non-gritty texture
Stable Oil-in-Solid

During grinding, the colloid mill creates a stable oil-in-solid dispersion, minimizing oil separation in the final product. The result:

  • Longer shelf life
  • No oil pooling during storage
  • Better product presentation and packaging performance
Adjustable Fineness Control

The grinding gap can be precisely adjusted, allowing producers to customize the texture of the tahini, from smooth to slightly coarse, depending on the market demand or regional taste preferences.

Easy Maintenance and Hygiene

The modular design ensures:

  • Fast disassembly for cleaning
  • Smooth internal surfaces to prevent paste buildup
  • Compliance with hygiene standards for food processing

Sesame Paste Production Line

In addition to our high-quality sesame paste machine, Furui Machinery provides a complete range of equipment for tahini production, from sesame cleaning machine, roaster, cooling belt, colloid grinder, to filling machine.

Sesame Paste Production Line

Cleaning Machine

The sesame seed cleaning machine is used to remove impurities such as dirt, stones, and foreign particles, ensuring a pure and high-quality raw material. Following this, a spin dryer is employed to dry the cleaned sesame seeds.

Sesame Roaster

Our roasters are designed to heat the seeds evenly, enhancing the flavor of your sesame seeds. After roasting, there is a cooling belt to cool down the seeds to a suitable temperature before grinding.

Colloid Grinder

This is the main equipment for grinding roasted or raw sesame seeds into a smooth paste. The colloid mill uses mechanical shear forces to break down the seeds, ensuring a fine texture and uniform consistency. Moreover, it has a user-friendly design for easy cleaning and maintenance.

Tanks

Mixing Tank: For blending the sesame paste with ingredients like oil or salt.

Storage Tank: To store the finished sesame paste and maintain its freshness.

Sesame Seed Cleaning Machine

Sesame Seed Cleaning Machine

Nut Roaster

Nut Roaster

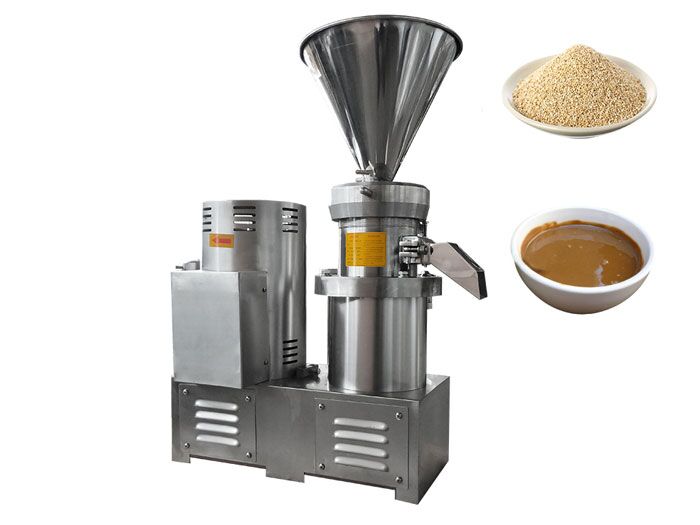

Sesame Seed Grinder

Sesame Seed Grinder

No. Equipment Name Power (kW) Quantity Function
1 Pneumatic Lifter 1.87 5 Transfers sesame seeds vertically between processing stages
2 Cleaning Machine 3.45 1 Removes dust and light impurities from raw sesame seeds
3 Destoner 4.5 1 Removes stones and heavy foreign materials from sesame seeds
4 Roasting Machine 125 1 Roasts sesame seeds to enhance aroma and loosen hulls
5 Cooling Machine 3.75 1 Cools roasted sesame seeds to stabilize quality
6 Colloid Grinder 30*2 1 Grinds roasted sesame seeds into fine, smooth tahini paste
7 Paste Storage Tank - 2 Holds tahini before further processing
8 Paste Pump 1.5 3 Transfers tahini paste between processing equipment
9 Mixing Tank with Cooling Jacket 4 1 Mixes and cools tahini to improve texture and prevent separation
10 Vacuum Tank 4 1 Removes air bubbles to ensure smooth and stable tahini paste
11 Electrical Control Cabinet - 2 Controls the operation of the entire production line
12 Piping - - Connects all processing equipment and transports paste and material flow

Sesame Grinding Machine Videos

Conclusion

Furui Machinery offers a wide range of high-quality sesame butter machines. Besides, we also provide a complete solution for tahini production, enabling efficient and high-quality output. Our equipment is renowned for its exceptional efficiency and robust durability. CE-certified to meet international quality and safety regulations, our machines deliver optimal performance across various industries. For more information on nut butter production solutions, please contact us today.
