Semi Automatic Filling Machine
Semi-automatic filling machine from Furui Machinery uses a piston that is driven by a pneumatic cylinder. It is versatile for a wide range of products, from liquid to paste, such as chili sauce, peanut butter, cream, honey, lotions, etc. It is available in both single-head and two-head models, offering flexibility based on production needs.
- Material contact parts are made of stainless steel;
- Small footprint, ideal for space-saving setups.
- Filling volume and speed are adjustable.
Semi Automatic Filling Machine
Furui Machinery offers four models of semi-automatic filling machines, available in both single-head and two-head configurations. The G1WY and G2WY models are designed for filling low-viscosity liquids like milk, mineral water, and juice. While the GIWG and G2WG models are ideal for thicker, more viscous products such as chili sauce, peanut butter, jam, honey, cream, shampoo, lotions, and more. These machines can also be seamlessly integrated with our nut butter or sauce production lines.
In addition, these semi-automatic fillers feature a horizontal structure and a compact tabletop design, with the option to customize them into a floor-standing version to suit your production needs. Below are more parameters for your reference.
| Model | G1WY | G2WY | G1WG | G2WG |
| Head | Single | Two | Single | Two |
| Filling speed (bottles/m) | 5-25 | 10-50 | 5-25 | 10-50 |
| Power | 20W | 50W | 20W | 50W |
| Voltage | 220V/110V 50/60 Hz | |||
| Rate air pressure | 0.4-0.6MPa | |||
| Filling accuracy | ≦±1% | |||
| Filling range | 5-100 ml, 10-300ml, 50-500ml, 100-1000ml, etc. | |||
| Suitable containers | Bottle, can, jar, bag, sachet, pouch, etc. | |||
| Product applications | For liquid, oil, paste, sauce, milk, beverage, juice, wine, paint, cream, lotion, etc. | |||
| Domains | For food industry, chemical industry, cosmetics industry, etc. | |||
| Other characteristics | Bench-top or floor-standing | |||
2-head Liquid Filling Machine

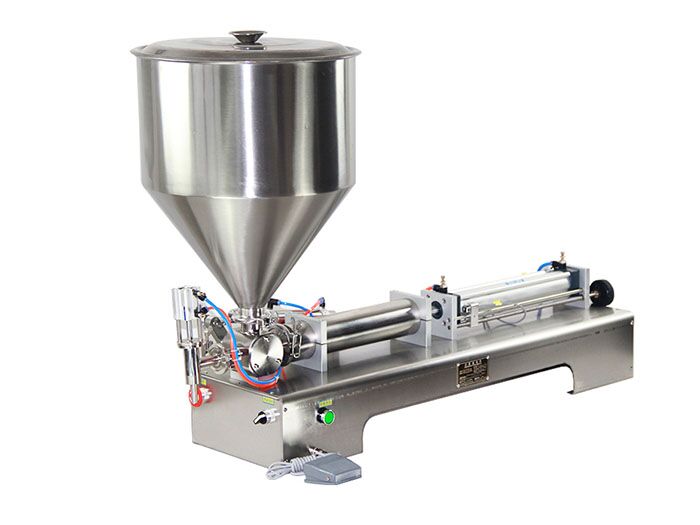

Single-head Paste Filling Machine
2-head Liquid Filling Machine
What Is Semi-automatic Piston Filling Machine?
At Furui Machinery, our semi-automatic piston filling machine is designed for efficiently filling both liquids and pastes. For thicker materials, the machine is equipped with a hopper to ensure smooth, consistent filling. It operates using a pneumatic cylinder, which drives a piston and utilizes a three-way valve system. This mechanism creates a vacuum chamber inside the material cylinder, allowing the machine to handle sticky or highly viscous fluids effectively.
True to its name, the machine offers both automatic and manual operation. In "automatic" mode, it fills containers automatically at a preset speed, while in "manual" mode, operators can trigger the fill by pressing a pedal or switch.
Applications
Furui’s semi-automatic filling machines serve a broad range of applications, from thin liquid to high-viscosity products.
- Food and Beverage: Filling juices, milk, edible oils, nut butter or paste, sauces, and jam.
- Pharmaceuticals: Precise filling of medical solutions and syrups.
- Cosmetics: Efficiently dispensing creams, lotions, and shampoos.
- Chemical Industry: Filling inks, paints, coatings, and other viscous products.
Features
1. Pneumatic Operation: The machine uses compressed air to power the piston movement, which ensures smooth and consistent filling operations.
2. High Precision: This machine utilizes a piston-cylinder system to control filling volume precisely.
3. Adjustable Filling Volume and Speed: The filling volume and speed are easily adjustable to meet various production needs.
4. Semi-auto Operation: The filling process is automated, an operator is typically required to place containers and start the filling cycle.
Semi-auto Filling Machine
Pneumatic Components
Nozzles
Conclusion
In conclusion, semi-automatic filling machines provide a cost-effective solution for small to medium production. Furui Machinery offers different models of semi-automatic fillers for both low-viscosity liquids and high-viscosity pastes. These machines are widely used across a wide variety of industries and are a valuable asset in your production lines for enhancing efficiency and precision. Contact us today for more information!
