Round Bottle Labeling Machine
Furui Machinery offers a range of round bottle labeling machines for sale, available in both semi-automatic and automatic models. These machines come in floor-standing and tabletop configurations to suit different production needs and space requirements.
- Ideal for applying labels to cylindrical containers, such as bottles, jars, cans, tubes, and more.
- Can be used as standalone units or integrated into a packaging line, with other equipment such as filling, capping, and coding systems.
Bottle Labeling Machine
Furui Machinery offers high-quality round bottle labeling machines designed for a variety of round containers, including bottles, jars, cans, tubes, etc. These machines are available in both automatic and semi-automatic models to suit different production capacities and requirements. They are engineered to apply labels efficiently to the front, back, or wraparound of containers, ensuring precision and consistency. Whether you're in the food and beverage, cosmetics, or pharmaceutical industry, Furui's round bottle labeling machines provide a versatile and reliable solution for your labeling needs. Welcome to contact us for more details!
Semi-automatic Bottle Labeling Machine
Semi-automatic labeling machine is designed to apply labels to round containers with some manual assistance. The operator simply places bottle into the machine, activates the process, and the machine accurately applies the label. These machines are portable, cost-effective, and ideal for small to medium-scale production.
- Adjustable Labeling Distance: The label height can be easily adjusted, ensuring simple and convenient operation.
- The machine can be equipped with a coding machine, enabling labeling and coding processes to be completed simultaneously.
- High-Precision Label Sensor: A built-in label sensor accurately detects the label position, preventing missed or misapplied labels.
<
| Model | TB-50 | TB-50D | TB-80 | TB-130 |
| Voltage | 220V/110V 50Hz/60Hz | |||
| Power | 120W | 120W | 150W | 150W |
| Speed | 20-50pcs/min | |||
| Accuracy | ± 1mm | |||
| Label Roll Inner Diameter (mm) | ≧Φ75 | |||
| Label Roll Outer Diameter (mm) | ≤ Φ250 | ≤ Φ300 | ||
| Bottle Diameter (mm) | Φ20–130 | Φ40–120 | Φ20–125 | |
| Max Label Size (mm) | W30-130*L30-300 | W150*L180 | W120*L400 | |
| Machine Size (cm) | 65*45*45 | 65*45*55 | 70*60*55 | 58*68*86 |
| Gross Weight | 25kg | 35kg | 38kg | 45kg |
Bottle Labeling Machine with Coding
TB-200 Bottle Labeler

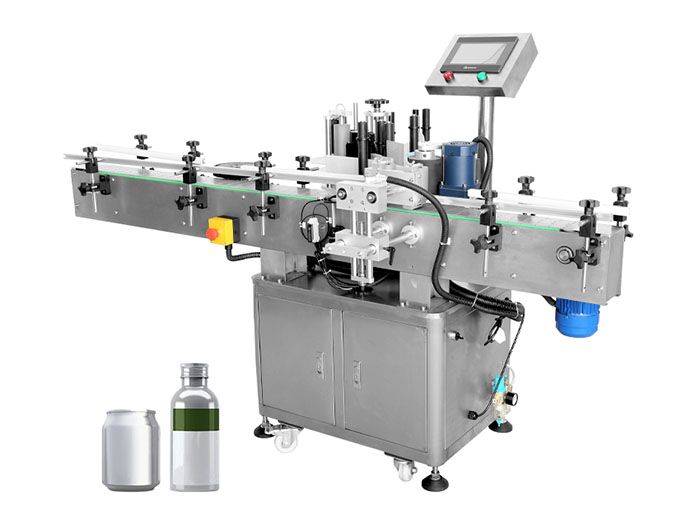

Automatic Bottle Labeling Machine
Furui Machinery offers two models of automatic bottle labeling machines, available in both floor-standing and tabletop configurations. These machines are specifically designed to apply labels to round bottles with no need for manual intervention.
The labeling process is fully automated, encompassing bottle feeding, positioning, and label application. Using a conveyor system, bottle feeder, and rollers, the machine efficiently transports bottles through each stage of the process. Advanced sensors and positioning systems ensure precise label placement, minimizing errors and maximizing accuracy.
Furui's automatic labeling machines deliver a reliable and efficient solution for high-volume operations, making them ideal for businesses looking to streamline their packaging operations.
| Model | TB-200 | TB-260 |
| Speed | 40–150 pcs/min | 25–50 pcs/min |
| Bottle Diameter | Φ30–120 mm | Φ30–100 mm |
| Label Size | 15–130(W)*15-300mm(L) | 15–150(H)*20-300(L) mm |
| Labeling Accuracy | ±1 mm | ±1 mm |
| Voltage/Power | 220V 50Hz/60Hz 1.5 kW | |
| Roll Diameter | Outer diameter: 350mm / Inner diameter: 76mm | |
| Weight | 200kg | 220kg |
| Dimensions | 2,000*1,400*1,300 mm | 2,000*1,400*1,300 mm |
TB-260 Bottle Labeler
TB-200
- Equipped with a PLC and touchscreen interface, making parameter settings simple and user-friendly.
- Utilizes a sponge belt rolling mechanism with automatic photoelectric tracking to prevent missed labels and label wastage.
- Capable of rapid labeling with a maximum speed of up to 150 pcs/min, ensuring efficient production.
- Built with a durable, high-load conveyor belt to handle various bottle sizes and weights.
- Offers stepless speed adjustment for labeling speed, and conveyor speed, allowing for customized operation based on production needs.
TB-260
- Designed for fixed-point labeling with high accuracy, ensuring precise label placement.
- Supports single-sided or double-sided labeling, making it suitable for various production requirements.
- Equipped with a photoelectric sensor to detect bottles and trigger the labeling process.
- Features a high-quality conveyor belt for smooth and stable bottle transportation, ensuring consistent performance.
- The machine can be integrated with filling machines and capping machines to achieve an automated production process.
How to Choose a Bottle Labeling Machine?
When purchasing a bottle labeling machine, please consider the following factors:
1. Bottle Shape and Size
- Specify the shape of your bottles: round, square, flat, oval, or irregularly shaped. You can send us some photos to confirm.
- Provide the dimensions of your bottles, including diameter, and height, to ensure the machine can accommodate them.
2. Label Type and Size
- Confirm the label dimensions (width and length or height) that the machine needs to support.
- Specify the label application type, for example, single-side labeling, double-side labeling, or wraparound labeling.
- Indicate the material of the labels, such as plastic labels, transparent labels, or adhesive stickers, as different machines may handle label materials differently.
3. Labeling Speed Requirements
Inform us of your production speed requirements (e.g., bottles per minute). This helps us recommend the most suitable solution.
4. Optional Features
Indicate if you require additional features, such as a coding machine, or integration with existing equipment, such as filling machines, capping machines, etc.
By considering these factors, you can select a bottle labeling machine that meets your specific requirements. At Furui Machinery, we offer a wide range of high-quality labeling solutions (for both round bottles and flat surfaces) tailored to suit businesses of all sizes. Whether you need semi-automatic machines or fully automated systems, we’re here to help streamline your labeling process. Welcome to talk with us for more details!
