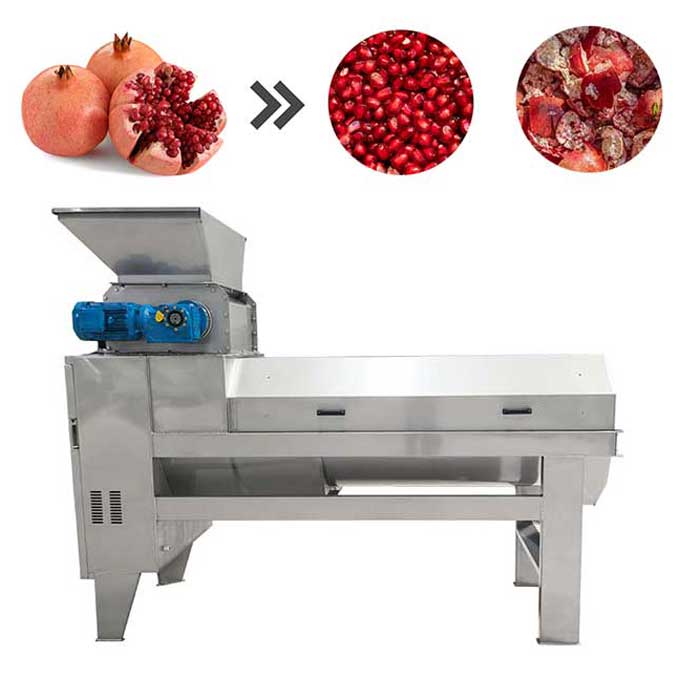

Pomegranate Peeler Machine
Our pomegranate peeler and deseeder machine is designed to efficiently separate pomegranate peel and seeds with a processing capacity of 1–2 tons per hour. Featuring a two-stage crushing and variable-speed separation system, it delivers clean separation of peel and seeds with minimal seed damage.
- All contact parts are made of food-grade stainless steel, ensuring hygiene and durability.
- Achieve ≥90% peel and seed separation, with seeds retaining a tannin content below 4% to prevent bitterness.
- Easily integrated with pomegranate juice machines, washers, and other processing equipment.
- Suitable for processing passion fruit, pomegranate varieties with thick skins, and similar fruits.

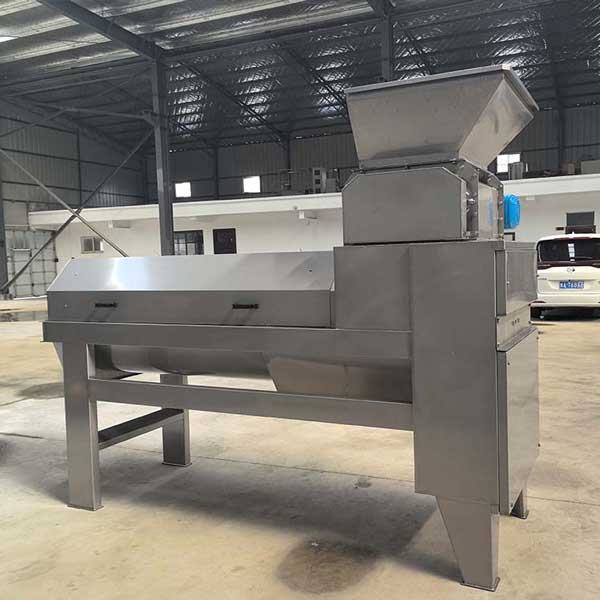

Pomegranate Peeler Machine
Pomegranate peeler machine is an essential piece of pomegranate processing equipment, serving as a pre-processing step for pomegranate juice extraction. It is not only a peeling machine but also a deseeder, used to quickly and cleanly separate pomegranate peel from seeds. Instead of labor-intensive manual peeling, this machine crushes and separates pomegranates in an automated process. Whether you operate a juice production line or a beverage factory, this machine ensures high separation efficiency, minimal seed loss, and consistent product quality. Below are the key technical parameters for your reference.
| Item | Pomegranate Peeler Machine |
| Processing Capacity | 1-5 t/h |
| Rotary Screen Diameter | 340 mm |
| Main Motor Power | 2.2 kW |
| Crushing Motor Power | 1.1 kW |
| Crushing Roller Speed | 60 r/min |
| Machine Weight | 400 kg |
| Overall Dimensions | 2570 × 680 × 1770 mm |
Pomegranate Peeler Machine
Output Products
- Clean Pomegranate Arils: The machine outputs pure, clean pomegranate seeds, which are ideal for juice extraction, fermentation, freezing, or direct food applications.
- Pomegranate Peel: Separated pomegranate peel can be dried for medicinal use, extracted for polyphenols/tannins, or processed further in cosmetic industries.
Features of Pomegranate Peeling Machine

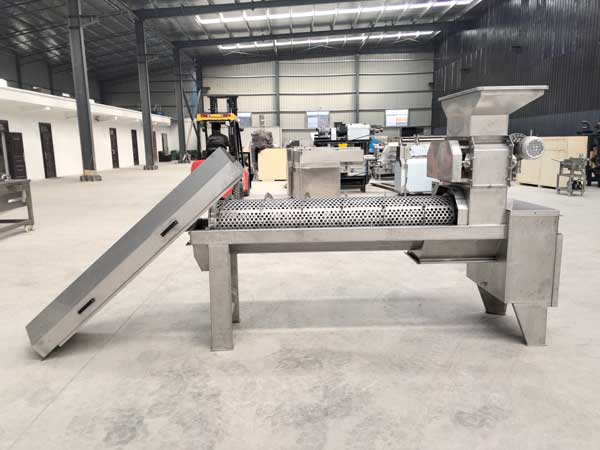

Pomegranate Peeling Machine
Screen

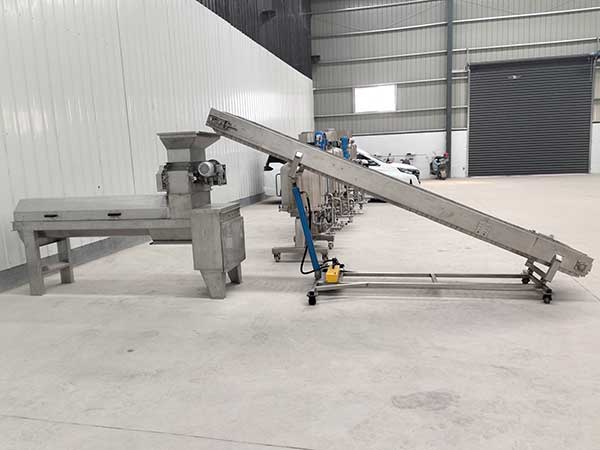

Pomegranate Peeler with Conveyor
Working Principle of Pomegranate Peeler
Our pomegranate peeler and deseeder mainly consists of the feeding hopper, crushing device, separation unit, frame, protective cover, transmission system, and electrical control cabinet.
-
Feeding: Whole pomegranates enter the machine through the feeding hopper and are directed into the upper crushing unit.
- Crushing: The pomegranates are squeezed and cut into smaller pieces under the opposing pressure of the crushing rollers and the sharp blades mounted on the rollers.
- Separation: After crushing --- where the peel and seeds are mostly loosened --- the material falls into the separation unit, which is equipped with a frequency-controlled separation shaft and rotating screen.
- Discharge: Under the combined action of the rotating shaft and screen, the pomegranate seeds pass through the screen holes and are discharged through the outlet. Meanwhile, the pomegranate peels move toward the end of the machine and are discharged from the rear outlet.
Pomegranate Deseeding Line
1. Pomegranate Feeding & Washing
Whole fruits are fed into the processing line and are thoroughly washed and disinfected to remove dust, dirt, and surface contaminants.
Equipment Used: Conveyor and Pomegranate Washing Machine
2. Pomegranate Peeling and Deseeding
This pomegranate peeler machine gently separates the fruit into clean arils, broken peel, small peel fragments, and membranes. Large peel pieces are discharged through a side outlet.
Equipment Used: Pomegranate Peeling Machine
3. Purification Process
This step removes impurities through a multi-stage purification system, including:
- Vibrating fine impurity removal (removes small peel fragments & membrane particles)
- Gravity separation (removes lighter impurities like floating membranes)
- Vibrating separation (eliminates remaining peel or foreign matter)
Then the purified arils pass through a vibrating filter with a fan to remove surface water and prepare them for final inspection or further processing.
