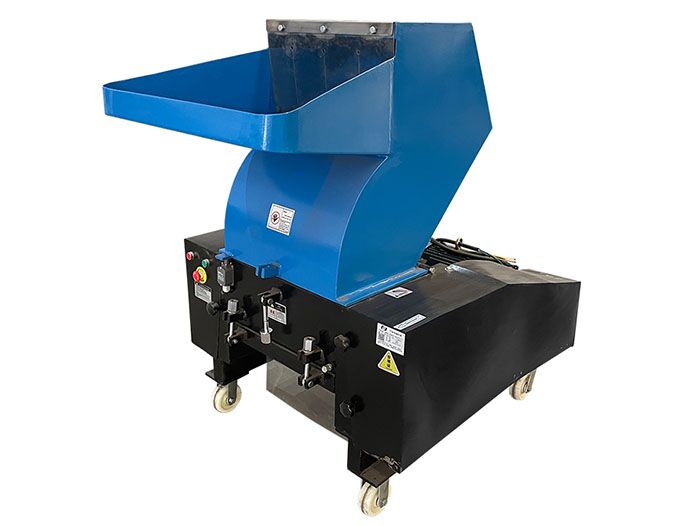

Plastic Crusher Machine
Plastic crusher machine is designed to break down various plastic materials into small pieces for recycling and reuse. It helps you streamline the recycling process, reduce waste, and make the most out of discarded plastic materials.
- Capable of processing a wide range of plastics, including plastic bottles, bags, plastic sheets, blocks, pipes, and more.
- Screen mesh sizes can be customized according to your needs.
- Various models to choose from, which are capable of processing 100-1,200 kg of plastic per hour.
Plastic Crusher Machine for Sale
Furui Machinery offers a range of high-performance plastic crusher machines, designed to meet the needs of businesses involved in plastic waste recycling and reuse. With processing capacities ranging from 100 to 1,200 kg/h, these machines provide an efficient solution for breaking down plastic materials into small pieces.
Equipped with rotating and fixed blades, the crusher ensures precise and effective shredding. It is capable of processing various types of plastics, including hard plastics (like ABS, PVC), soft plastics (like LDPE, HDPE), PE, PP, bottles, films, bags, containers, pipes, and more. This versatility, combined with its robust performance, makes the machine an essential tool for plastic recycling plants and waste management facilities.
| Model | PS-180 | PS-230 | PS-300 | PS-400 | PS-500 | PS-600 | PS-800 | PS-1000 | PS-1200 |
| Power | 2.2kW | 4kW | 5.5kW | 7.5kW | 11kW | 15kW | 22kW | 37kW | 45kW |
| Capacity (kg/h) | 100-150 | 150-200 | 200-300 | 400-600 | 500-700 | 600-800 | 700-900 | 800-1,000 | 800-1,200 |
| Rotating blades | 9 | 6 | 9 | 12 | 15 | 18 | 24 | 30 | 36 |
| Fixed blades | 2 | 2 | 2 | 2 | 2 | 4 | 4 | 4 | 4 |
| Screen mesh size | 8mm | 8mm | 10mm | 10mm | 10mm | 12mm | 12mm | 12mm | 12mm |
| Weight (kg) | 240 | 340 | 480 | 660 | 900 | 1,400 | 1,950 | 2,500 | 3,000 |
| Feed port size (mm) | 180*136 | 230*170 | 300*210 | 400*240 | 500*300 | 600*310 | 800*400 | 1,000*400 | 1,200*500 |
| Dimensions (mm) | 730*440*900 | 1,000*700*1,050 | 1,100*800*1,200 | 1,300*900*1,400 | 1,450*1,050*1,500 | 1,500*1,250*1,720 | 2,000*1,400*2,100 | 2,000*1,600*2,100 | 2,300*2,100*2,800 |
Plastic Crushers
Industrial Plastic Crusher
Blades
Materials Can Be Processed:
Furui Machinery offers various blade designs tailored to different materials, such as claw-shaped blades for processing hard plastics. Here are the materials our plastic crushers can handle:
- Plastic containers and bottles, including PET bottles, HDPE containers (e.g., detergent bottles, milk jugs), shampoo and lotion bottles;
-
Plastic films and sheets, packaging, such as garbage bags, greenhouse covers, shrink wraps, etc,
-
Plastic pipes, including PVC pipes and fittings, HDPE and PPR pipes, etc.
- Other plastic items, such as plastic pallets, trays, plastic chairs, tables, automotive plastic components, shells/casing of home appliances, and more.
Role of Plastic Crusher Machine
A plastic crusher machine is widely used across various industries for reducing, recycling, and reusing plastic waste.
Size Reduction
One of the main purposes of plastic crusher is to reduce the size of bulky plastic materials into small pieces, making them easier to handle, transport, and process in subsequent recycling stages like washing, drying, and re-melting.
Plastic Recycling
Plastic crusher can serve as the pre-treatment for waste recycling. This machine can break plastic waste into smaller, manageable pieces so that they can be reprocessed or melted down for manufacturing new products.
Cost-saving for Manufacturing
For companies producing bottles, packaging, or other plastic goods, small and uniform pieces require less energy for further processing, like extrusion, pelletizing, and injection molding.
Features of Plastic Crusher Machine
How Does Plastic Crusher Work?
- The rotary blades are mounted on the rotating disk and are powered by an electric motor. As the rotary blades spin rapidly, they create a relative motion against the fixed blades.
- The plastic materials are fed into the machine, where the gap between the rotary and fixed blades creates a shearing force. This force cuts and crushes the larger plastic pieces into smaller pieces.
- Then the crushed plastic pieces pass through a screen mesh at the bottom of the crusher. By the way, the screen mesh size can be customized according to your desired sizes.
Main Parts of Plastic Crusher
Crushing chamber
Constructed from manganese steel, the crushing chamber is designed to house the entire crushing mechanism and withstand the stress and friction generated during the crushing process.
Rotary and fixed blades
The rotory blade rotates at high speed and interacts with the stationary blades to crush plastic materials. The blade gap is adjustable, allowing you to customize the crushed particle size.
Main shaft
The main shaft is made from alloy steel, which is a central rotating element that drives the moving blades.
Screen
The screen allows only properly sized plastic particles to pass through after they have been crushed. The size of the openings in the screen can be adjusted depending on your required particle size.
Conclusion
Furui Machinery's plastic crusher is designed to handle a wide range of materials, from soft plastics like films or bags to hard materials such as containers and sheets. Built with robust construction and high-quality components, this machine ensures durability and reliable performance.
To make a cleaner and safer work environment, our crusher can be equipped with a dust collection system to minimize exposure to harmful particles. Additionally, it offers competitive pricing, making it a cost-effective solution for enhancing your recycling operations while reducing costs.
If you need to process other materials such as metal, tires, or wood, consider our double-shaft shredder, specifically engineered for heavy-duty tasks. Contact us today to learn more about our crusher!
