Passion Fruit Juicer Machine
The passion fruit juice machine from Furui Machinery is a high-efficiency industrial juicer specifically designed for processing passion fruits (Passiflora edulis). It integrates juicing, peeling, and seed separation into a single automated operation, making it ideal for commercial juice production.
- Designed for juicing, peeling, and seed separating passion fruits efficiently.
- Food-contact materials are made of food-grade stainless steel to ensure hygiene and durability.
- Can be integrated into a juice production line, from cleaning to filling.
- Can also be used for seed removal in tomatoes, watermelons, and chili peppers.

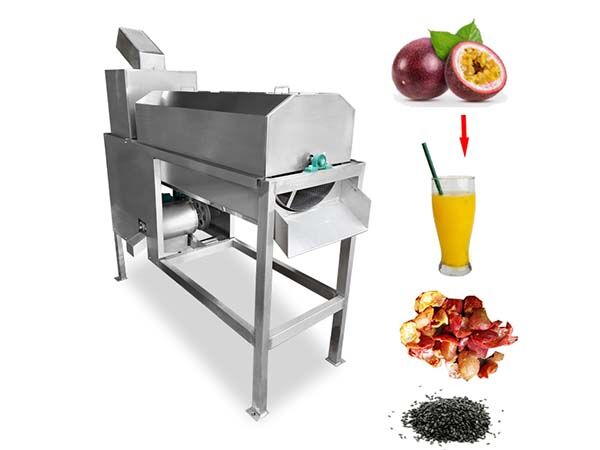

Passion Fruit Juice Machine
Furui Machinery offers different options for extracting juice from passion fruits. The GZJ series is specially designed for passion fruit processing. It efficiently extracts pure juice while separating seeds and peel. The result is a clean output of pure pulp, separated peel, and seeds - ideal for juice production lines and fruit processing applications.
In addition to passion fruits, the GZJ series is also used for seed removal in tomatoes, watermelons, and chili peppers by adjusting the inner structure.
Model | GZJ-1 |
Production Capacity | 0.8-1.0 t/h |
Power | 2.2 kW |
Dimensions | 1,900*850*2,260 mm |
Weight | 650 kg |

Industrial Orange Juicer Machine
Features of GZJ Passion Fruit Juicer

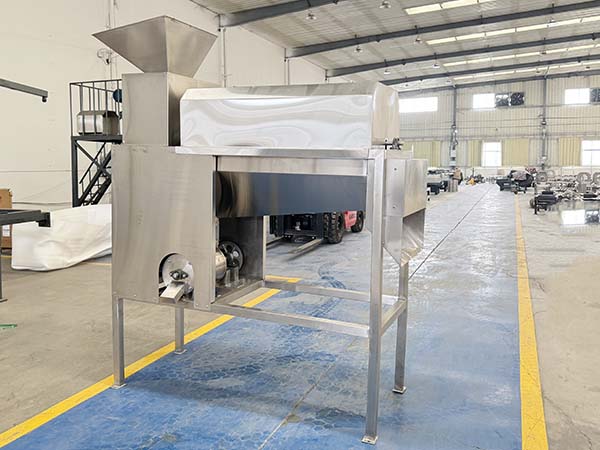

Passion Fruit Juicer Machine

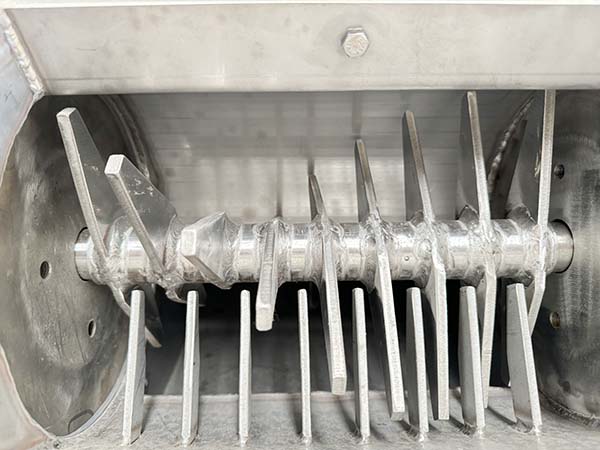

Crusher

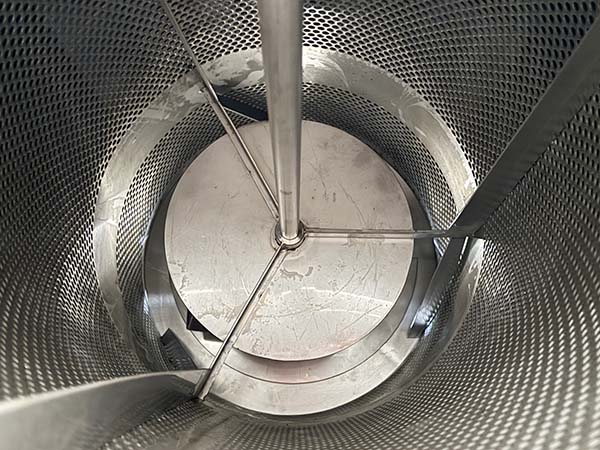

Inner Structure
How Does a Passion Fruit Juicer Work?
The machine consists of a feeding hopper, crusher, pulp separation drum, seed separation chamber, transmission system, and frame.
- Passion fruits are fed into the feeding port and then are crushed by specially designed crushing blades.
- Crushed material moves into the separation drum, where juice, pulp, and peel are separated.
- The peel is discharged through the waste outlet, while the juice and seeds then enter the seed separation chamber.
- Inside the seed separator, a silicone scraper blade rotates to extract juice through fine holes, which is collected via the juice outlet.
- Seeds are discharged through a dedicated outlet - resulting in clean separation of juice, pulp, peel, and seeds.
Passion Fruit Juice Production Line
1. Washing & Sorting
Fresh passion fruits are lifted into an industrial washing machine for cleaning. Then the clean fruits will pass through a sorting machine where damaged, underripe, or moldy fruits are removed manually.
2. Juicing
Use a GZJ passion fruit juice extractor or a citrus juicer machine to extract the juice. The key difference is that the GZJ machine produces seed-free juice, while juice from a citrus juicer machine typically contains seeds. If you require clear, seedless juice, it's recommended to use a seed removal machine after juicing.
3. Sterilization & Filling
The concentrated juice is heated to 98°C and held for 30 seconds, then cooled down in a tubular sterilizer. Then fill the juice into containers for sale.
Conclusion
The GZJ series juice extractor is specifically designed to extract juice from passion fruits without seeds or peels, ensuring high-quality, smooth juice. Alternatively, our citrus juicer machine can also be adapted for passion fruit processing by modifying its internal structure. You can choose the right juicing equipment based on your production needs and desired juice quality.
In addition to individual machines, Furui Machinery provides a complete passion fruit juice production line - from fruit washing and sorting to juice extraction and filling. We offer customized solutions to help you build an efficient and scalable juice production facility. Contact us today to get expert advice, equipment specifications, and factory pricing!
