Ginger Juicer Machine
An industrial ginger juicer machine is essential for large-scale ginger processing businesses. Furui Machinery offers a range of ginger juicer machines using a screw press mechanism to extract juice from tough and fibrous ginger roots. These machines excel in extracting juice while minimizing waste, making them ideal for commercial uses.
- With a processing capacity ranging from 0.5 to 2.5 tons per hour;
- Complete ginger juice production line is available;
- Constructed from stainless steel, making it durable and easy to clean;
- Suitable for extracting juice from various materials, including leafy greens, pineapples, grapes, apples, and carrots.
Specifications of Ginger Juice Extractor
Our ginger juicer machine uses a screw press mechanism to efficiently extract juice from fibrous and tough ginger roots, producing clear and smooth juice. We offer two series to meet your specific needs: the LZ series is ideal for processing crushed materials, while the PZJ series integrates a crusher with the screw press juicer, streamlining the process by combining crushing and juicing in one machine. Please check the following parameters.
LZ Series
| Model | Capacity | Power | Dimensions |
| LZ-0.5 | 0.5 t/h | 1.5 kW | 910*385*810mm |
| LZ-1.5 | 1.5 t/h | 4.0 kW | 1,300*500*1,330mm |
| LZ-2.5 | 2.5 t/h | 11 kW | 1,480*740*1,780mm |

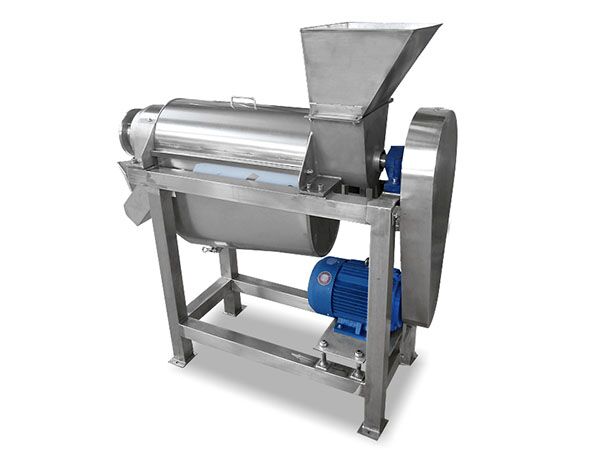

LZ Series Ginger Juicer
PZJ Series (With Crusher)
| Model | Capacity | Power | Dimensions |
| PZJ-0.5 | 0.5 t/h | 2.05 kW | 910*500*1,250mm |
| PZJ-1.5 | 1.5 t/h | 6.5 kW | 1,300*650*1,380mm |
| PZJ-2.5 | 2.5 t/h | 12.5 kW | 1,500*700*2,000mm |

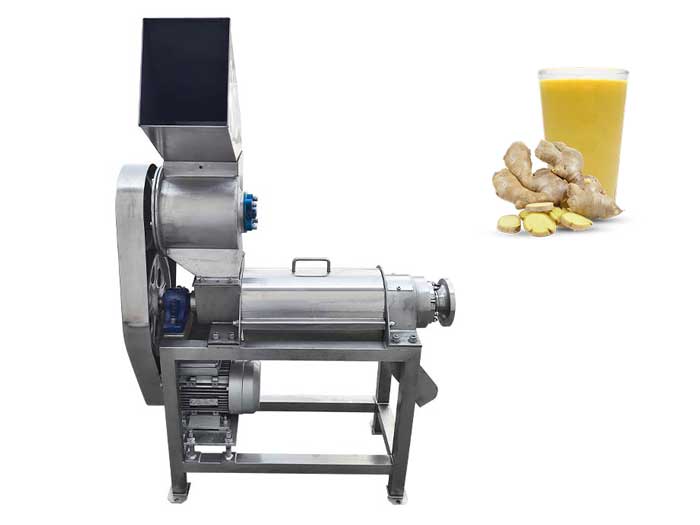

PZJ Series Ginger Juicer
Videos of Extracting Ginger Juice
Ginger Juice Production Line
Furui Machinery offers complete ginger juice production line from washing, crushing, juicing to filling.
1. Commercial Vegetable Washer
This vegetable cleaning equipment can effectively remove dirt, soil, and impurities from ginger roots, preparing for the next processing.
2. Conveyors
Conveyors transport ginger between different processing stages. Using conveyors will enhance the automation of the production line and provide a steady and controlled flow of ginger.
3. Fruit and Vegetable Crusher
The crusher breaks down the ginger into small pieces, maximizing juice yield during the juicing stage.
4. Ginger Juicer Machine
Screw press machine extracts juice from ginger roots. The screw press mechanism is efficient in handling fibrous ginger, ensuring a high juice yield while separating the liquid from the solids. Furui Machinery offers a range of screw press machines for sale, with a processing capacity of 0.2-50 t/h. Welcome to contact us for more details.
5. Screener and Storage Tanks
A screener is used to remove the fibers and pulp from the ginger juice, making the juice smoother and clearer. The storage tank is placed under the juice outlet of the screener to store pure ginger juice.
How to Choose a Ginger Juicer Machine for Your Business
If you are looking for a cost-effective ginger juicing machine for startups, LZ-0.5 or PZJ-0.5 is recommended. Their processing capacity is 0.5 tons/h. The difference is that PZJ-0.5 is equipped with a crusher. LZ-0.5 will be cheaper, but you need to crush gingers manually.
For small to medium-sized ginger juice businesses, our PZJ series ginger juicer will be the best choice. Its processing capacity ranges from 0.5 to 2.5 tons per hour. More importantly, it is equipped with a built-in crusher, so there’s no need to purchase a separate crushing machine. That means you save on both equipment costs and space in your processing area.
For larger-scale businesses requiring a capacity of more than 3 tons per hour, we will recommend our screw press machine. Ginger root contains a high amount of fiber, and the screw press is designed to handle tough, fibrous materials while extracting juice efficiently. Our screw press machine is capable of handling 0.2-30 tons of gingers per hour to meet high-volume production. By the way, for higher juice yield, it’s better to cut the ginger roots into smaller pieces before pressing. You can do this manually or use a vegetable crusher machine. If you need help, please feel free to contact us!
