Fruit and Vegetable Washing Machine
Commercial fruit and vegetable washing machine is designed to clean large quantities of fruits and vegetables efficiently. Furui Machinery offers a variety of vegetable and fruit washer machines designed to cater to different cleaning requirements, including:
- Drum Washing Machine
- Brush Washing Machine
- Bubble Washing Machine
- Spray Washing Machine
Fruit and Vegetable Washing Machine
At Furui Machinery, we provide a wide range of industrial fruit and vegetable washer machines designed for various materials. Our offerings include drum washing machines, brush washing machines, bubble washing machines, and spray washing machines. To better meet your needs, we also offer customized washing systems. For instance, our bubble washing machine can be equipped with spray nozzles to improve cleaning efficiency. Whether you're handling delicate leafy greens or robust root vegetables, we have the perfect solution for you.
1. Roller/Drum Washing Machine
The roller fruit and vegetable cleaning machine uses a rotating drum with brushes inside to gently scrub and wash the produce as it moves through the machine.
Applications: Suited for cleaning or peeling produce that grows in soil, for example, potatoes, carrots, yams, sweet potatoes, ginger, and similar root vegetables, as well as apples, pears, and more.
Material: Nylon brushes and 304 stainless steel.
| Model | Power (kW) | Processing Capacity | Dimensions (mm) |
| GMQJ-2 | 1.5 | 2 t/h | 2,000*850*1,200 |
| GMQJ-5 | 3.0 | 5 t/h | 3,000*1,050*1,500 |
| GMQJ-10 | 4.0 | 10 t/h | 4,500*1,250*1,650 |

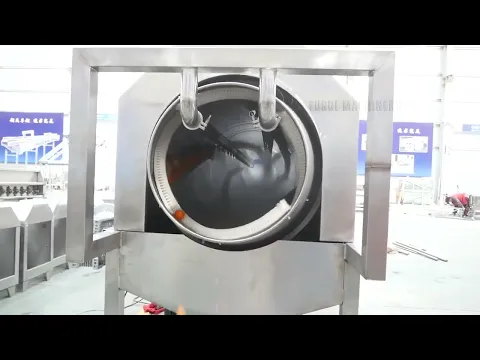

Drum Vegetable Washing Machine
Working Principle
The machine consists of a frame, drum, brushes, water tank, spray pipe, circulating water pump, and transmission parts. Inside the drum, there are circularly arranged brushes and a hollow spiral. As the drum rotates, the materials tumble, and the brushes scrub their surfaces. At the same time, high-pressure water is sprayed from the top through spray pipes, washing the materials as they move. The dirty water is collected in a water tank below through the gaps in the drum. While the materials move slowly toward the discharge outlet along with the hollow spiral.
Not Suitable for Delicate Produce: The rotating and scrubbing action may damage soft and delicate items like leafy greens or berries.
2. Brush Washing Machine
A brush washing machine is specifically designed to scrub and wash vegetables and fruits using rotating brushes.
Applications: The machine is equipped with soft bristle brushes to clean fruits and vegetables by removing dirt, pesticides, and residues. When fitted with hard bristle brushes, it can also be used for peeling fruits and vegetables.
Suitable for cleaning spherical or long round fruits and vegetables, like carrots, white radishes, potatoes, onions, yams, ginger, apples, oranges, mangos, pears, and more. While the machine is not suitable for leafy greens, which can get trapped or damaged in the brushes.
| Model | Power (kW) | Processing Capacity | Dimensions (mm) |
| MSJ-2 | 0.75 | 1-2 | 3,500*710*1,000 |
| MSJ-5 | 1.1 | 2-5 | 4,000*1,000*1,000 |
| MSJ-10 | 1.5 | 5-10 | 4,500*1,200*1,000 |
| MSJ-20 | 2.2 | 10-20 | 5,000*1,500*1,000 |
Brush Fruit and Vegetable Washer
Working Principle
The brush washing machine mainly consists of a frame, brush rollers, a wastewater tank, spray pipes, a circulating water pump, and a transmission system. During operation, the produce enters the machine, where fruits and vegetables are rotated between the self-rotating brush rollers for thorough scrubbing. As the brushes rotate and the produce is pushed forward, a spray pipe above the brushes rinses off dirt and dust from the surface of the produce. Under water pressure, the dirt and dust are flushed into the wastewater tank for removal. You can also install a water filtration system at the bottom of the wastewater tank for water recycling.
3. Bubble Washing Machine
A bubble washing machine is designed for washing fruits and vegetables using the action of water and air bubbles.
Applications: Suitable for delicate items like leafy greens, berries, or soft fruits, like tomatoes, grapes, blueberries, mulberries, strawberries, mangos, wheatgrass, etc. But it is not suitable for heavily soiled materials.
Except for the transmission part and blower, the rest of the equipment is made of stainless steel, and the seals are made of food-grade rubber.
| Model | Power (kW) | Processing Capacity | Dimensions (mm) |
| CXJ-2 | 2.8 | 2 t/h | 2,353*910*1,600 |
| CXJ-5 | 3.35 | 5 t/h | 2,540*1,140*1,800 |
| CXJ-10 | 4.1 | 10 t/h | 3,000*1,400*2,000 |
| CXJ-20 | 6.6 | 20 t/h | 4,000*1,600*2,500 |

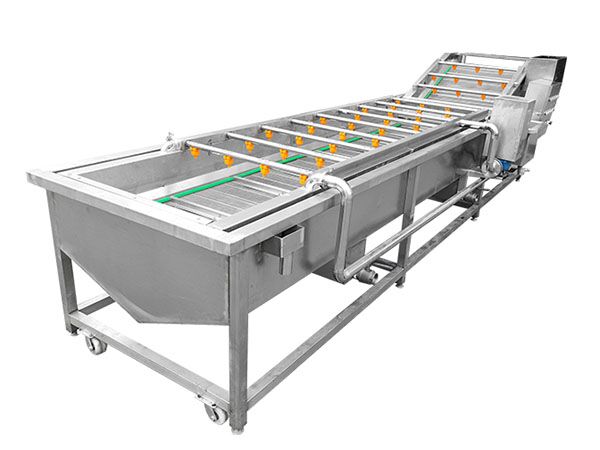

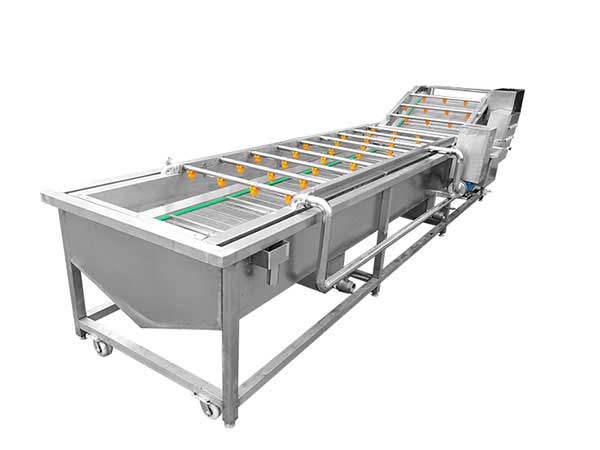

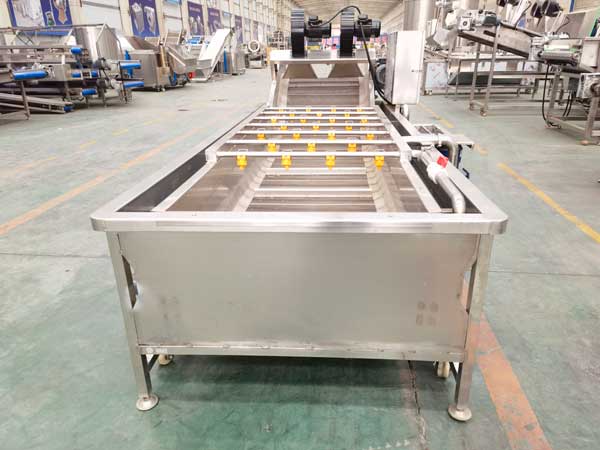

Bubble Washing Machine
Working Principle
The bubble washing machine consists of a frame, water tank, blower, conveyor, circulating water pump, and transmission system.
During operation, the blower creates air bubbles, making the fruits and vegetables tumble and agitate, to effectively loosen and remove dirt and debris. The water is filtered and recycled through the circulating pump and spray pipes for additional rinsing. Inside the water tank, a conveyor gently moves the produce forward. After rinsing, the cleaned fruits and vegetables are transported to the next stage of processing.
4. High-pressure Spray Washer
A spray washing machine uses high-pressure nozzles to spray water onto the vegetables and fruits, effectively removing dirt, soil, pesticides, and other contaminants.
Applications: It is suitable for washing small to medium-sized fruits and vegetables, such as apples, tomatoes, mangoes, gingers, etc. Not ideal for soft or delicate produce.
Features: Low energy consumption and excellent water-saving performance.
| Model | Power (kW) | Processing Capacity | Dimensions (mm) |
| CXJ-2 | 2.8 | 2 t/h | 2,353*910*1,600 |
| CXJ-5 | 3.35 | 5 t/h | 2,540*1,140*1,800 |
| CXJ-10 | 4.1 | 10 t/h | 3,000*1,400*2,000 |
| CXJ-20 | 6.6 | 20 t/h | 4,000*1,600*2,500 |
High-pressure Spray Washing Machine
Working Principle
The machine primarily consists of a conveyor, spray nozzles, a water collection tank, a circulating water pump, and a transmission system.
During operation, the produce is transported horizontally on the conveyor belt and passes through the high-pressure spray system. The upper and lower spray nozzles thoroughly rinse the produce from multiple angles. The used water flows into the collection tank, where it is filtered and recycled by the pump. After cleaning, the produce is transferred to the next processing stage via a conveyor.
Choosing the right washing machine mainly depends on the type of produce you're handling. If you have any questions, please feel free to contact us!
Benefits of Industrial Vegetable Washer
An industrial fruit and vegetable washing machine is commonly used in food production lines before further processing, such as peeling, cutting, or juicing.
1. Thorough Cleaning: The washing machine removes soil, pesticides, debris, and other residues from fruits and vegetables, ensuring cleanliness.
2. Increased Efficiency: Industrial washing machines are capable of cleaning large volumes of fruits and vegetables quickly, making them ideal for high-capacity processing lines.
3. High Automation: These machines automate the washing process, reducing the need for manual labor, and improving overall production efficiency.
In conclusion, if you're looking for a reliable fruit and vegetable washing machine, Furui Machinery has you covered. Our range of high-quality cleaning equipment is mainly made from SS304 stainless steel, including all contact parts and frames, ensuring durability and food safety. We also offer customizable solutions to meet your unique requirements. Don't hesitate to contact us for more details!
