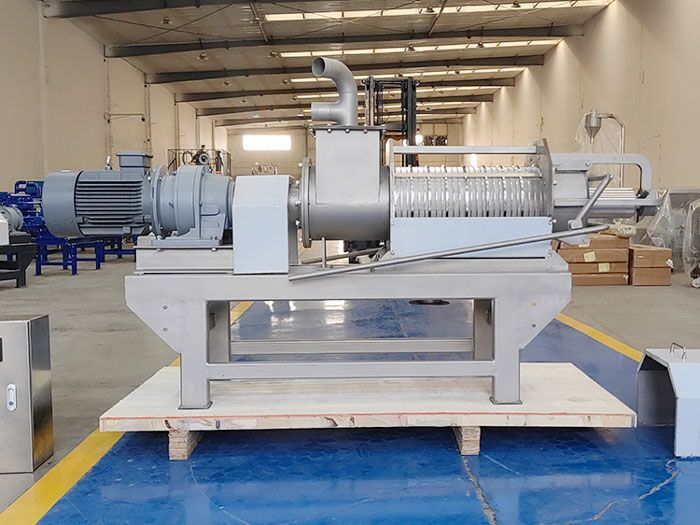

Manure Dewatering Machine
Manure dewatering machine is designed to separate solid and liquid components from animal manure, widely used in processing cow dung, pig manure and chicken manure. Furui Machinery has been selling manure dewatering machines since 2014. In 2023, our manure screw press was fully upgraded and two models are currently on sale. To date, we have provided our products to over 1,000 customers all over the world.
- 20 years of industry experience.
- Suitable for processing cow dung, pig manure, and chicken manure.
- Lots of test videos and customer videos for your reference.
- Related spare parts are available.
Specifications of Manure Dewatering Machine
Furui Machinery offers two models of screw manure dewatering machines for sale to meet different needs. The FR-180 model can efficiently process chicken manure, pig manure, and cow dung. On the other hand, the FR-280 model is suitable for larger-scale operations but is not recommended for broiler manure. In addition, we also provide a fully stainless steel version to choose from. Welcome to contact us for more details!
- Suitable for processing cow dung, chicken manure, pig manure, rabbit manure and other animal waste;
- The water content of dewatered manure can be reduced to 55%-60%;
- Voltage, screen opening size, etc. can be adjusted;
- Own factory, with ready stock available for quick shipping;
- Customization is available according to your specific needs.
| Model | FR-180 | FR-280 |
| Voltage | 380V | 380V |
| Power | 4kW | 5.5kW/7.5kW |
| Dimensions (mm) | 2,000*600*1,300 | 2,400*800*1,300 |
| Weight | 450kg | 720kg |
| Processing Capacity | 8-10 m³/h | 20-25 m³/h |
| Screen Diameter | 180mm | 280mm |
| Inlet Diameter | 76mm | 76mm |
| Overflow Diameter | 76mm | 76mm |
| Drainage Pipe Diameter | 110mm | 110mm |
| Material | Carbon Steel + SS304 | Carbon Steel + SS304 |
3D Drawing
Layout of Manure Dewatering Machine
Upgraded Manure Dewatering Machine in 2023
Appreance
Screen
Screw
- The new machine adopts a larger and thicker frame, making it more sturdy.
- The motors and reducers we use are purchased from well-known Chinese brands (or Siemens) to ensure the stability and service life of the machine.
- The updated version is equipped with lifting rings and handles for easy transportation and installation.
Shipping to Spain
Manure Dewatering Screw Press
Screw Manure Dewater Machine
Sloped Screen Dewatering Machine
Furui Machinery also offers three models of sloped screen machines for efficient solid-liquid separation of animal waste. These machines utilize a sloped, perforated screen and a screw press to remove liquid from the solid fraction. Please refer to the table for more details.
- Suitable for materials with high moisture content, such as water-soaked manure, water-flushed manure, etc.
- Stainless steel construction, ensuring longevity and easy cleaning;
- Sloped screw design for gravity separation;
- Can work with screw press machine for drier output;
- Customization is available according to your specific needs.
| Model | FR-800 | FR-1200 | FR-1600 |
| Voltage | 380V | 380V | 380V |
| Power | 4kW | 5.5kW | 4kW |
| Pump Power | 3kW | 3kW | 3kW |
| Sizes (m) | 1.63*1.41*1.505 | 2.06*1.41*1.505 | 2.8*1.2*1.7 |
| Weight | 310kg | 480kg | 550kg |
| Capacity | 15-25 m³/h | 25-35 m³/h | 34-40 m³/h |
| Screen Size (mm) | 1,010*800 | 1,010*1,200 | 1,600*1,200 |
| Opening Size | 0.5mm or be customized according to your needs | ||
| Material | SS304 | SS304 | SS304 |
Slope Screen Manure Separator
Inclined Screen Separator
Shipping to Korea
Manure Dewatering Machine Videos
End Products of Manure Dewatering
1. Dewatered Solid
- The solid fraction separated from manure can be used as fertilizer directly or be composted into organic fertilizer, which is ideal for improving soil fertility in agriculture.
- The solids are also used as bedding material for livestock.
- Used as feedstock for biogas production.
2. Liquid Effluent
- Can be used to produce biogas through anaerobic digestion.
- Used as a natural liquid fertilizer for crops.
Conclusion
A manure dewatering machine offers several significant benefits for livestock farms. By separating liquids from solids, it significantly reduces waste volume, saving on storage costs and making handling and transportation easier. The byproducts can be further processed into valuable products like organic fertilizers, adding economic value to the farm. Additionally, dewatered manure produces less odor, creating a more pleasant and healthier environment for both animals and humans. Overall, a manure dewatering machine is a valuable investment that can improve efficiency, reduce costs, and contribute to a more sustainable farming operation. If you want to know more about this machine, please contact Furui Machinery for help.
