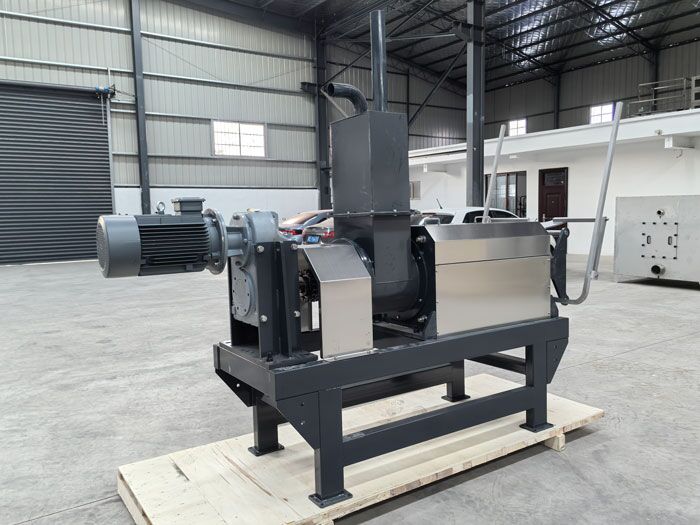

Screw Press Manure Separator
Screw press manure separator is widely used to separate solids and liquids in animal waste. At Furui Machinery, we offer two models available, with a processing capacity ranging from 8 to 25 m³/h. The separator can reduce the moisture content of manure to 55-60%.
- Made of stainless steel and carbon steel or an all-stainless steel;
- Offering essential spare parts, such as screws and screens;
- Used for dewatering cow dung, pig manure, chicken manure, etc.
- Custom design is available.
Screw Manure Separator for Sale
At Furui Machinery, we have two types of manure separators to choose from, namely manure screw press and sloped screen separator. Screw press separator works by using screw mechanism to separate the solid and liquid components of materials. And it can lower the liquid content to about 60%. Furui machinery has two models for sale, FR-180 and FR-280. Please check the table on the right for more parameters.
- Commonly used in manure management or biogas plants;
- Voltage can be customized according to your requirements;
- Screen opening sizes range from 0.3 to 2mm, which can be customized to meet your needs;
- Screw and screen are made of stainless steel, making it durable to use;
- Low power consumption to save your operating costs.
| Model | FR-180 | FR-280 |
| Voltage | 380V | 380V |
| Power | 4kW | 5.5kW/7.5kW |
| Dimensions (mm) | 2,000*600*1,300 | 2,400*800*1,300 |
| Weight | 450kg | 720kg |
| Processing Capacity | 8-10 m³/h | 20-25 m³/h |
| Screen Diameter | 180mm | 280mm |
| Inlet Diameter | 76mm | 76mm |
| Overflow Diameter | 76mm | 76mm |
| Drainage Pipe Diameter | 110mm | 110mm |
| Material | Carbon Steel + SS304 | Carbon Steel + SS304 |
FR-180 Manure Separator
FR-280 Stainless Steel Separator
Screw and Screen
Applications of Screw Separator in Various Industries
1. Pig Manure Separation
The screw separator is ideal for processing pig manure, whether from flushed systems, lagoon storage, or dry collection. After separation, the solid fraction is loose, less sticky, and emits less odor, making it easier to handle and transport.
2. Chicken Manure Processing
For poultry farms, our screw press separator provides an efficient and low-cost method for drying chicken manure. The mechanical pressing process removes excess moisture, allowing the solid fraction to dry faster.
3. Dairy Manure Dewatering
Dewatered cow dung is widely used for organic fertilizer production, livestock bedding, mushroom cultivation, and more. By using our screw press separator, farms can efficiently process cow manure, reducing waste management costs while creating additional economic benefits.
4. Duck Manure Management
Freshly separated duck manure contains high levels of crude protein, making it a valuable feed source for aquaculture, including fish and shellfish farming. This not only improves manure management but also provides an additional revenue stream.
5. Biogas Slurry Separation
In biogas projects, solid-liquid separation is essential for handling fermentation residues. Our screw separator efficiently processes biogas slurry and residue, making it easier to transport and utilize.
6. Industrial Applications
- Brewery & Distillery: Spent grains, distillery waste;
- Herbal Processing: Herbal medicine residues, tea leaves, coffee extraction waste;
- Wood & Paper Industry: Pulp and fiber residues.
Uses of Dewatered Manure
Cow Dung
Dewatered cow dung is a valuable organic fertilizer, which can be used in gardens, farms, and agricultural fields. Or it can be used as a base material for composting. Besides, it can be used as bedding material for livestock.
Pig Manure
The heavy metal content of the dewatered pig manure exceeds the standard. It is generally used in the production of organic fertilizer. It can't be used as fertilizer directly.
Chicken Manure
The dewatered chicken manure can be used as feed for pigs and cattle or be used directly as a plant fertilizer. It also can be fermented to make organic fertilizer.
Separated Liquid
The best way to handle the separated liquid is to ferment it in a biogas digester for approximately 20 days. After fermentation, the liquid can be used for flushing animal husbandry facilities or as a fertilizer for plants.
Screw Separator Videos
The screw manure separator operates by using an underwater pump to transfer manure slurry into the machine. Inside the machine, the screw gradually pushes the material forward. As the material moves, the pressure continuously increases. This pressure forces the liquid to be squeezed out through the screen, while the solid residues are compressed and discharged through the outlet. Below are videos for your reference. You can also check our Youtube Channel for more videos.
Screw Press Separator
- Working Principle: Utilizes a rotating screw inside a screen. The screw compresses the material against the screen wall, forcing liquid out through the screen while pushing the solids to the discharge end.
- The liquid content of the dewatered solid is about 55-60%.
- Suitable for various organic wastes, including manure, sludge, and agricultural residues.
- These two separators can be used together.
- Machine material: standard vision is made of carbon steel and stainless steel or fully stainless steel vision.
Slope Screen Separator
- Working Principle: Uses a sloped screen and screw press to separate solids from liquids. As the material is fed onto the screen, gravity helps the liquid drain through the openings while the solids are retained and further processed by a screw press.
- Suitable for separating materials with high liquid content (over 90%).
- The liquid content of the dewatered solid is about 70-80%.
- Commonly used in wastewater treatment, farms with water-flushing manure systems.
- Machine material: almost all stainless steel.
Stainless Steel Manure Separators
Manure Screw Press for Sale
Manure Separators at Factory
Manure Separator to Germany
Screw Separators to Spain
Manure Separators to Austria
Conclusion
Screw press separator is a reliable and cost-effective solution for animal waste management. It effectively dewaters manure, reducing the volume and weight of the waste. In addition to manure processing, the screw press separator can handle spent grains, starch slurry, paper pulp, and more.
At Furui Machinery, we offer high-quality screw press separators for sale. Our popular models, the FR-180 and FR-280, are available in both standard and all-stainless steel versions to meet your specific needs. Our separators have been successfully installed on over 1,000 farms worldwide, demonstrating their reliability and effectiveness. With our rich experience, we are committed to helping you manage manure more efficiently. Contact us today for more details!
